System Overview
-

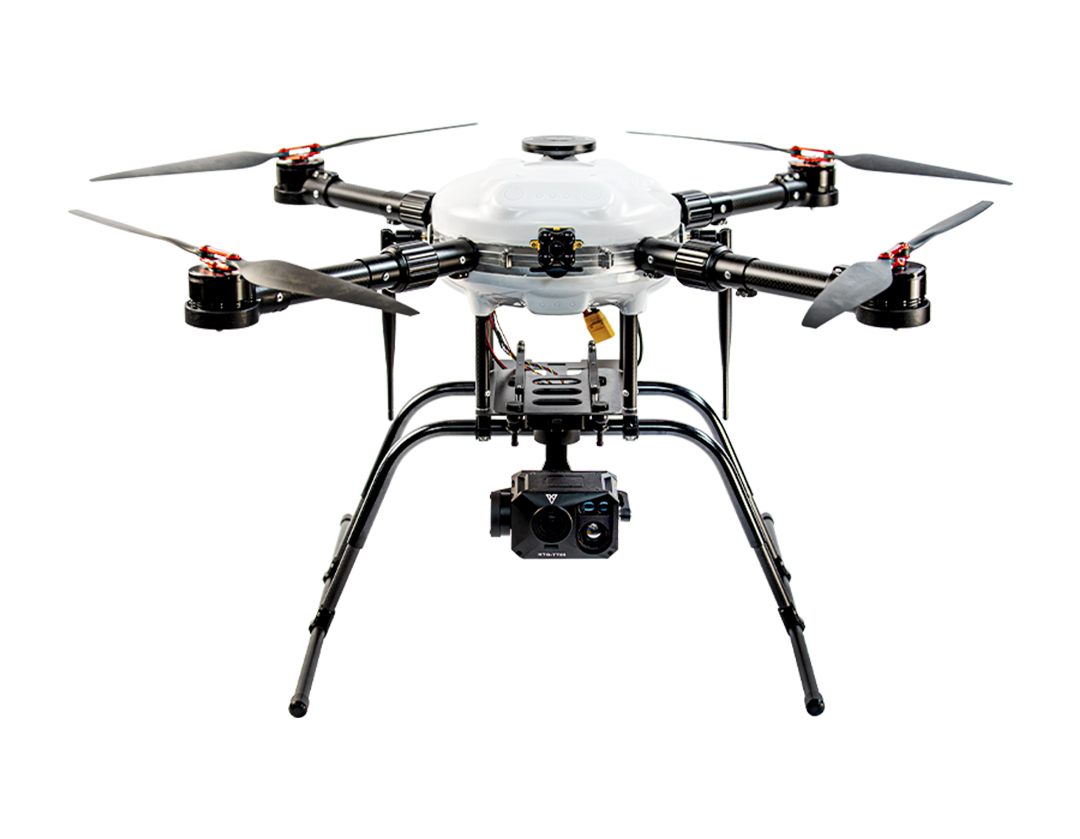

Foldable Quadcopter Design
This system features a quadcopter structure with foldable arms and propellers, greatly enhancing portability and transport efficiency. Equipped with high-performance brushless motors, delivering strong power, extended endurance, and low maintenance—ensuring stable and reliable flight for diverse missions. -
Aluminum Frame & Infrared Obstacle Avoidance
The UAV features an aluminum frame with a high-strength, sealed PC housing for reliable operation in diverse environments. The gimbal supports both top-and bottom-mounted configurations for mission flexibility. Integrated with an infrared obstacle avoidance system, ensuring flight safety and situational awareness.
-
Multi-Mode Flight Control
The system features a high-precision flight controller with autonomous navigation, manual GPS, and attitude modes. It supports waypoint-based flight, precise manual control, and stable operation in GPS-denied environments. Built-in real-time monitoring and alerts ensure safe and reliable missions. -
Servo-Controlled Hook System
A servo mechanism for remote payload drop under maximum takeoff weight without counterweights, maintaining balance and stability.
Key Advantages and Features
Design And Performance
High-lifted single main rotor design with excellent wind resistance and weather tolerance, powered by electric brushless motor system which minimizes vibration & ensuring easy operation and maintenance.
Flight Control
Integrated autopilot system capable of executing missions based on pre-planned routes, updating mission parameters to the GCS dynamically, ensuring efficient operations and data transmission.
Imaging System
Features a dual-light (EO/IR) three-axis stabilized gimbal for high-resolution image, real-time & long-range communication including dual-frequency, dual-channel wireless communication system for stable transmission.
Special Features
Electric propulsion ensures low noise and improve concealment during hovering. Built-in GPS logging enables accurate positioning, supports image focus, and enables real-time data transmission to the intelligence center.
Applications
Designed with a spacious landing gear configuration, it accommodates diverse payloads with a maximum carrying capacity of 2.5 kg, enhancing rescue efficiency.
Cybersecurity Certification
Certified by TTC Joint Drone Cybersecurity Lab, ensuring secure data transmission, system stability, and anti-interference capabilities.
Basic Performance Specifications
| Fuselage Length (for aircraft) | 700mm |
| Deployment Dimensions (L×W×H) | 1000×1000×345mm |
| Aircraft Weight (excluding battery) | 2.9 kg |
| Maximum Takeoff Weight (MTOW) | 8 kg |
| Maximum External Payload Capacity | 3 kg |
| Power Battery/Weight | LiPo 22000mAH(2Kg) |
| Maximum Endurance Time (without payload) | 40 min |
| Maximum Operating Altitude | 1000m |
| Basic Communication (data & video transmission) Range | <5Km |
| Maximum Flight Speed | 20m/s |
| Cruise Speed | 5m/s |
| Maximum Rate of Climb | 4m/s |
| Wind Resistance | Beaufort 4 |
Standard Equipment
-
High-Performance Brushless Motor
Delivers high power density with stable output. Its efficient, low-impedance design minimizes energy loss and extends flight time. Premium bearings and optimized cooling ensure durability, while precise RPM control enhances stability and responsiveness. -
40A Brushless ESC
Delivering stable current output, supporting 2S-6S LiPo batteries for multirotor UAVs. Performing high-precision PWM control for smooth motor operation along with overcurrent, overtemperature, and low-voltage protection for improved durability and flight safety. -
Integrated Display Ground Station
An advanced handheld ground control station designed specifically for UAV applications, featuring high-end communication capabilities to ensure reliable, long-range, and secure data transmission across multiple frequency bands.
-
16CH Remote Controller
The 16CH transmitter with FASSTest & T-FHSS 2.4GHz ensures stable, low-latency control. It supports 16 channels and is ideal for UAVs, helicopters, and fixed-wing aircraft. The 4.3-inch touchscreen offers an intuitive interface with customizable settings, telemetry feedback, voice alerts, and CNC metal joysticks for smooth control. -
GPS/Attitude Flight Controller
The system integrates a 6-degree-of-freedom MEMS sensor, 3-axis magnetometer, and high-sensitivity GNSS receiver with GPS/GLONASS support. It features a high-precision SINS/GPS flight control system, records flight data in real-time, and ensures safety with automatic return-to-home or hover in case of anomalies. -
5Km Data & Video Link
Dual-band wireless module in slide-rail design. Customizable frequency/power. ISM-compliant and durable in harsh conditions.
-
6S/22000mAH Li-Po Battery
This Li-Po battery offers high energy density, fast charging, and excellent safety. With long endurance, high cycle life, and strong stability, it is an ideal power source for electric UAVs and other demanding applications. -
Charger
A dual-channel LiPo charger for UAVs, balancing two 6-cell batteries at once. Supports balance, storage, and standard charging. Features master-slave mode for synchronized settings and built-in protections against short circuits, reverse polarity, and overheating. -
Tri-Sensor 3-Axis Gimbal Camera
EO/IR system with high-resolution visible and thermal imaging cores. Quick-release rail design with stabilized mount and damping structure ensures stable imagery. Built-in smart tracking module allows automated target tracking and full PTZ control via GCS software.
