Design & Features
Basic Performance Specifications
Design & Features

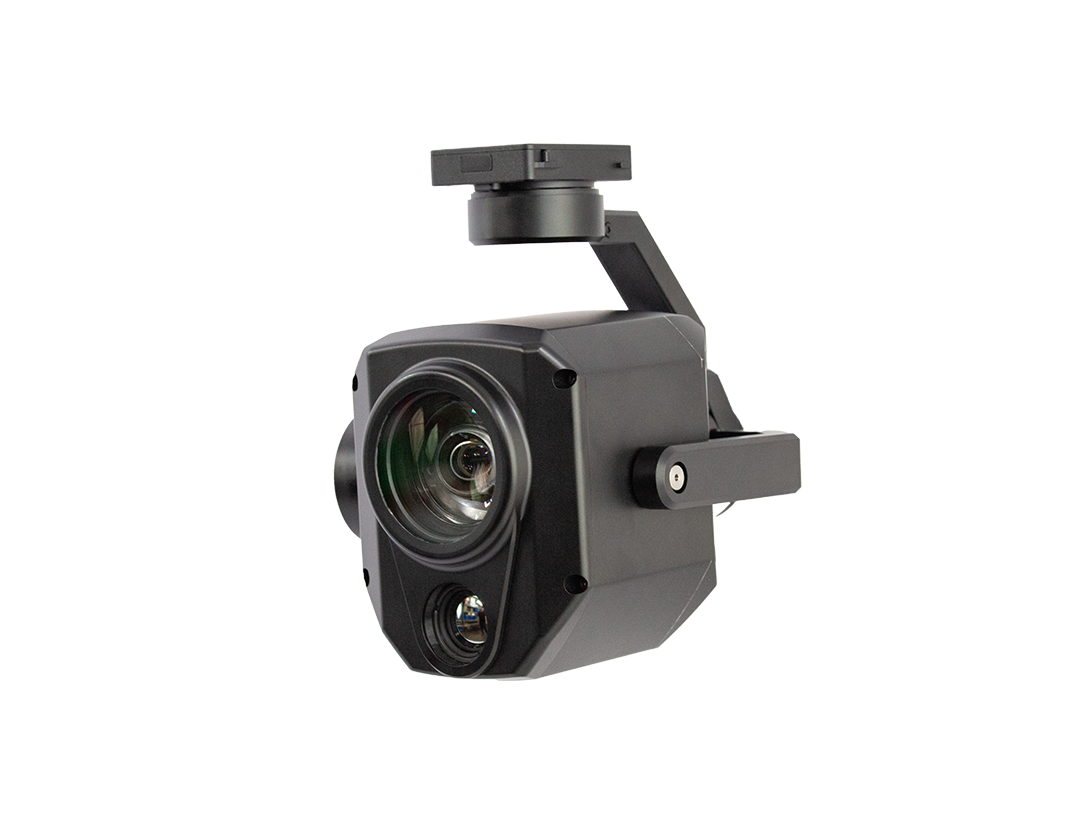

Dual-Sensor Imaging System
With high-quality visible-light and thermal cameras, it ensures clear imaging and accurate heat detection in any environment, day or night.
2K High-Definition Video
Features a 5.14MP 1/2.8" Sony Starvis sensor, capable of recording up to 2592x1944@30fps.

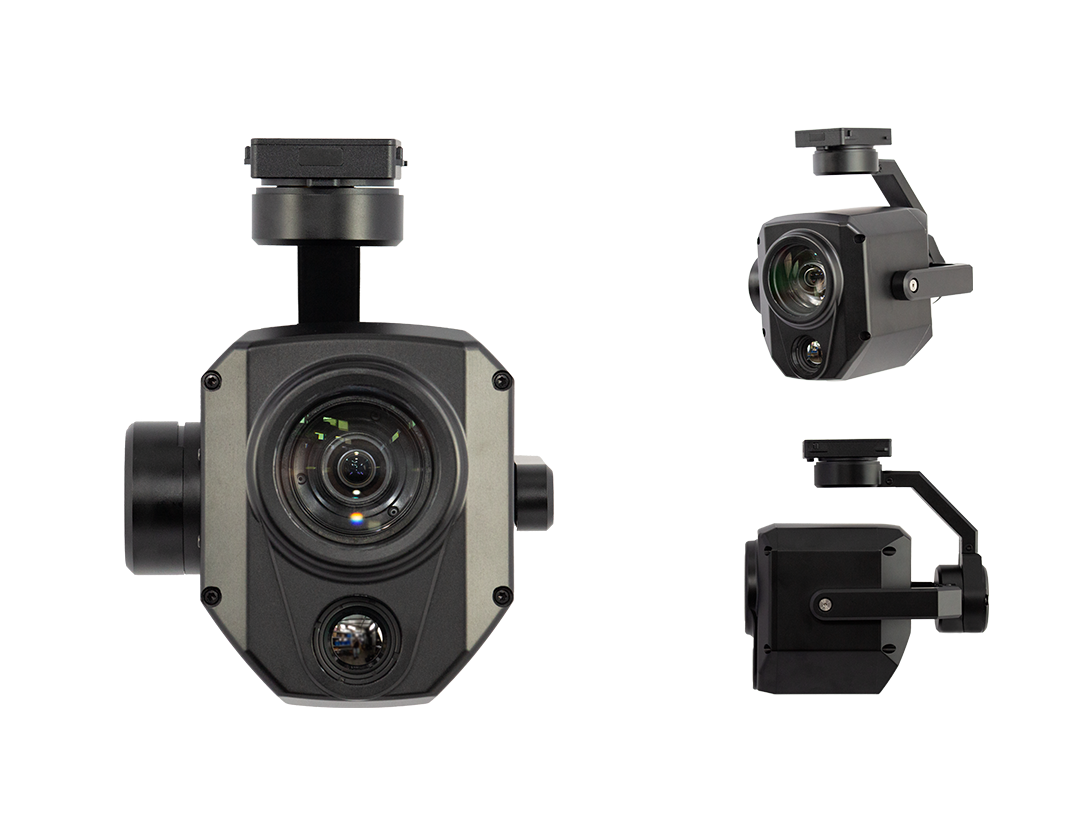

Three-Axis Stabilized Gimbal
Integrated with a three-axis stabilization system providing ±0.01° accuracy, ensuring stable image output in motion or vibration-prone environments.
Precise Operation
Supports full-range PTZ control and zoom functionality, allowing flexible and accurate imaging from various angles.
Quick-Release Design
Slide-rail quick release system enables fast installation and removal, improving flexibility and maintenance efficiency.
Waterproof Design
Equipped with IP55 protection, preventing dust ingress and withstands water splashes, ensuring consistent outdoor operation.
Basic Performance Specifications
| DT1001R | |
| basic spec. | |
| Input Voltage | 12 - 50V |
| Power | < 20W |
| Weight | 521.7g |
| Dimension | 134 * 92 * 135mm |
| Operating Temp. | -10℃ ~ 65℃ |
| Storage Temp. | -20℃ ~ 70℃ |
| Memory Card | Micro SD Card |
| Interface | RJ45 Ethernet (IP) |
| Water Resistance Rating | IP55 |
| Gimbal | |
| Angle Vibration | ±0.008° |
| Control Range | Pitch: +45° to -90°, Yaw: 360° |
| Structure Range | Pitch: -132.5° to 73° Roll: ±60°, Yaw: ±360° |
| Control Speed | Pitch: 120°/s, Yaw: 180°/s |
| EO | |
| CMOS | 1/2.8" Sony Starvis CMOS Sensor |
| Pixel | 5.14M pixels |
| Optical Zoom | 10x"(for magnification or zoom) F=5mm ~ 50 mm |
| F-number | F1.4 ~ 2.5 |
| FOV | 6°~46°(Horizontal) ; 3°~24°(Vertical) |
| Sensitivity | 0.008 lux (color) , 0.003 lux (black & white) |
Resolution |
2592x1944 @ 30fps 2592x1520 @ 30fps 1920x1080 @ 30fps 1280x720 @ 30fps 640x480 @ 30fps |
| DRI（M）(1.8m*0.5m) | D:5910 R:1470 I:1740 |
| Vid | H.264+ / H.264 / M-JPEG |
| IR | |
| Sensor | non-cooler LWIR |
| Resoultion | 640*480 @ 30fps |
| Lens | 18mm Fixed-fouse lens |
| Sensitivity | <50mk |
| DRI（M）(1.8m*0.5m) | D:630 R:130 I:70 |
