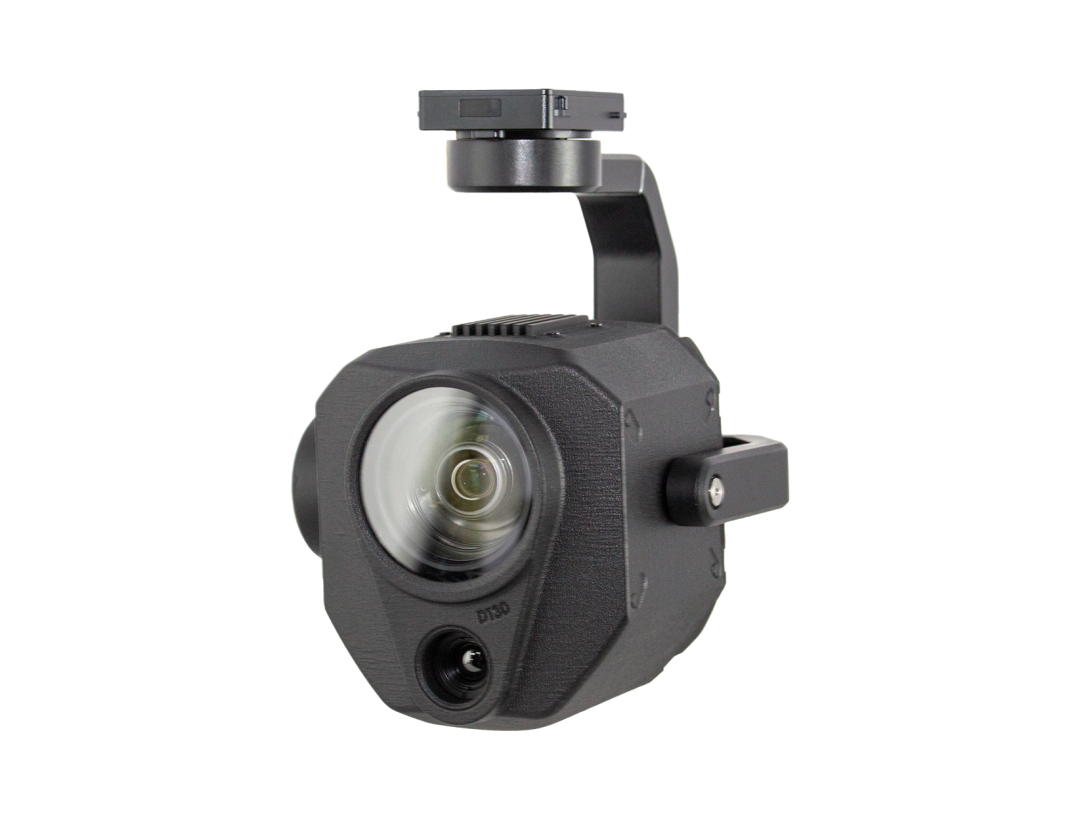

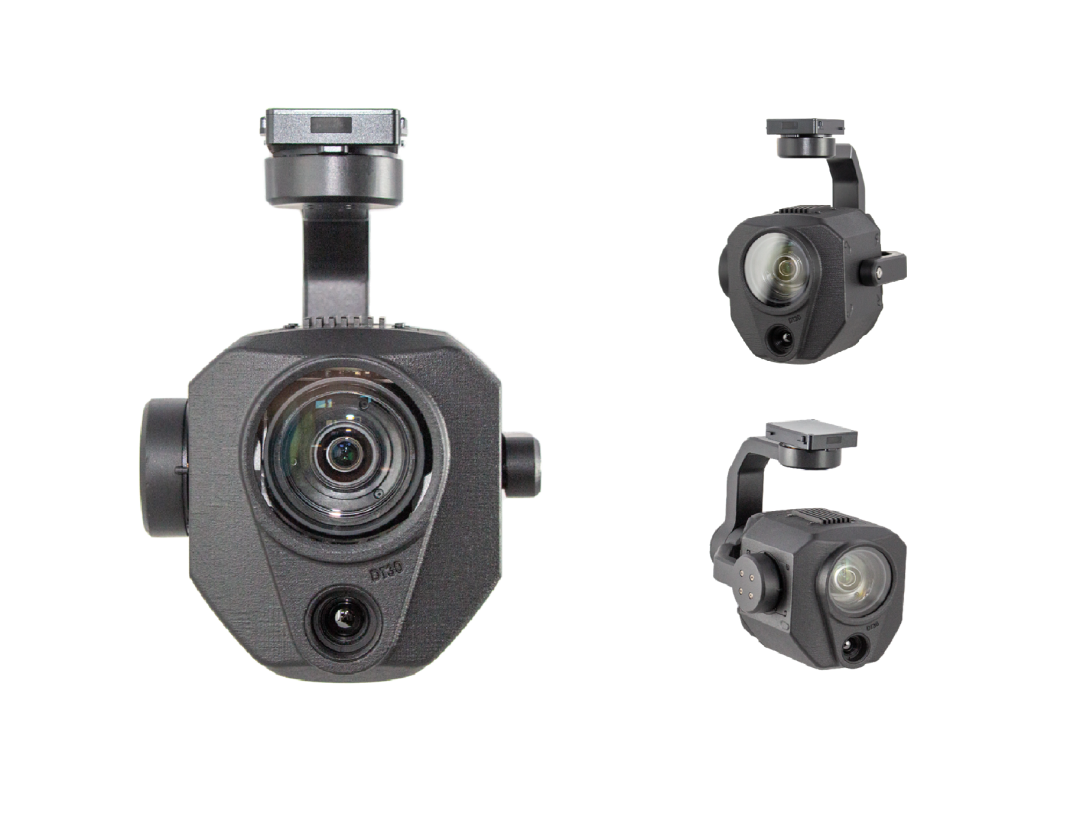

Design and Features
Dual-Sensor Core System
With high-quality visible and thermal cameras, it ensures clear imaging and accurate detection in any environment, day or night.
4K Visible Light Camera
Equipped with an 8MP sensor capable of 4K video output for detailed visual monitoring.
Three-Axis Stabilized Gimbal
Integrated with a dual-axis stabilization system providing ±0.01° accuracy, ensuring stable image output in motion or vibration-prone environments.
Precision Operation
Supports full-range PTZ control and zoom functionality, allowing flexible and accurate imaging from various angles.
Quick-Release Design
Slide-rail quick release system enables fast installation and removal, improving flexibility and maintenance efficiency.
Intelligent Tracking Module
Optional AI-based image recognition enables automatic target identification and tracking, delivering smart surveillance capabilities.
Thermal Imaging Technology
The thermal camera operates effectively in low-light conditions, making it ideal for nighttime surveillance and applications in challenging environments.
Basic Performance Specifications
| KTG-DT3001 | |
| Basic Spec. | |
| Input Voltage | 12-50V |
| Power | 8.4W |
| Weight | 803g |
| Dimension | 166*128*166mm |
| Operating Temp. | -10o C ~ 65oC |
| Storage Temp. | -20o C ~ 70oC |
| Memory Card | Micro SD card |
| Interface | RJ45 (IP) |
| Gimbal | |
| Angle Vibration | ±0.008o |
| Control Range | Pitch:+45º ~ -90o，Yaw:360º |
| Structure Range | Pitch:+45º ~ -90o，Yaw:360º， Roll:+90º ~ -60º |
| Control Speed | Pitch:120º/s，Yaw:180º/s |
| EO | |
| CMOS | 1/2.8" Sony Starvis CMOS Sensor |
| Pixel | 8M Pixels |
| Optical Zoom | 30x" (for magnification or zoom) F=4.8mm~ 144 mm |
| F-number | F1.5 ~ F3.4 |
| FOV | 3.07°~57.05°（Horizontal）；1.6°~34.04°（Vertical） |
| Sensitivity | 0.009 lux (color), 0.004 lux (black & white) |
| Resolution | 3840x2160@30fps , 2592x1520@30fps, 1920x1080@30fps, 1280x720@30fps, 640x480@30fps |
| DRI（M）(1.8m*0.5m) | D:17010 R:4250 I:2130 |
| Vid | H.264+ / H.264 / M-JPEG |
| IR | |
| Sensor | non-cooler LWIR |
| Resoultion | 640*480@30fps |
| Lens | 13.5mm Fixed-focus lens |
| Sensitivity | <50mk |
| DRI（M）(1.8m*0.5m) | D:90 R:170 I:4690 |
