Design and Features
Basic Performance Specifications

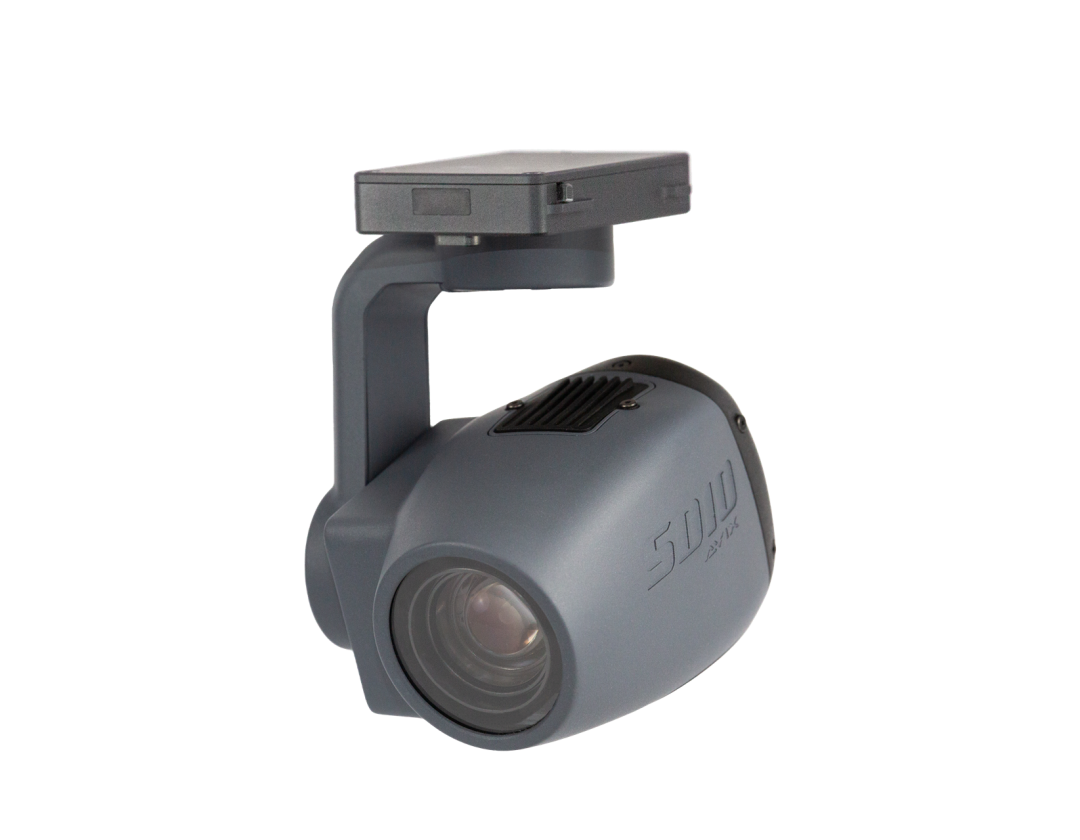

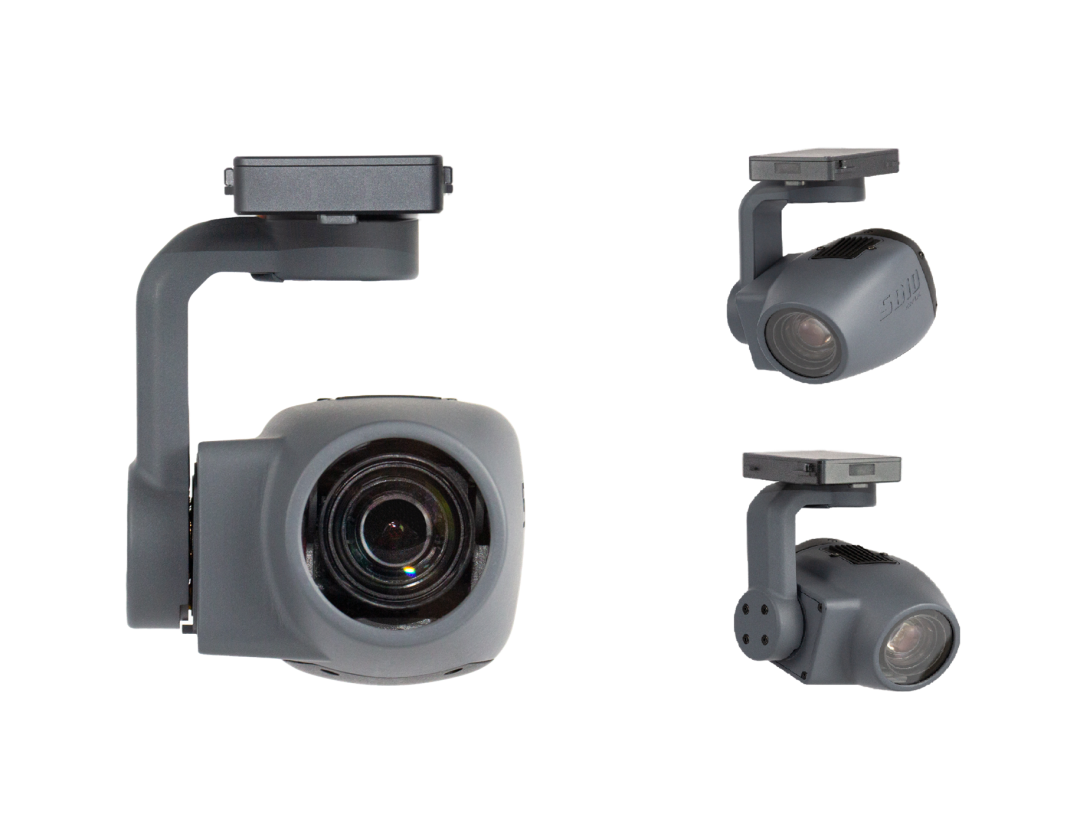

Design and Features
Single Optics System
Equipped with a high-quality visible light camera, ideal for delivering precise imagery in complex environments, ensuring high efficiency in surveillance or inspection.
2K High-Definition Video
Dual-Axis Stabilized Gimbal
Offers ±0.01° stability precision to ensure stable video output in mobile or vibrating environments.
Precision Control
Supports full-range PTZ gimbal movement and zoom, enabling flexible multi-angle imaging operations.
Quick-Release Design
Uses a slide-rail quick-release mechanism for fast installation and removal, enhancing operational flexibility and maintenance efficiency.
Basic Performance Specifications
| KTG-SD1000 | |
| Basic Spec. | |
| Input Voltage | 12-50V |
| Power | 8.4W |
| Weight | 390g |
| Dimension | |
| Operating Temp. | -10o C ~ 65oC |
| Storage Temp. | -20o C ~ 70oC |
| Memory Card | Micro SD card |
| Interface | RJ45 (IP) |
| Gimbal | |
| Angle Vibration | ±0.008o |
| Control Range | Pitch:+45º ~ -90o，Yaw:360º |
| Structure Range | Pitch:+45º ~ -90o，Yaw:360º |
| Control Speed | Pitch:120º/s，Yaw:180º/s |
| EO | |
| CMOS | 1/2.8" Sony Starvis CMOS Sensor |
| Pixel | 5.14M Pixels |
| Optical Zoom | 10x" (for magnification or zoom) F=5mm~ 50 mm |
| F-number | F1.4 ~ F2.5 |
| FOV | 6°~46°（Horizontal )；3°~24°（Vertical） |
| Sensitivity | 0.008 lux (color), 0.003 lux (black & white) |
| Resolution | 2592x1944@30fps, 2592x1520@30fps, 1920x1080@30fps,1280x720@30fps, 640x480@30fps |
| DRI（M）(1.8m*0.5m) | D:5910 R:1470 I:1740 |
| Vid | H.264+ / H.264 / M-JPEG |
