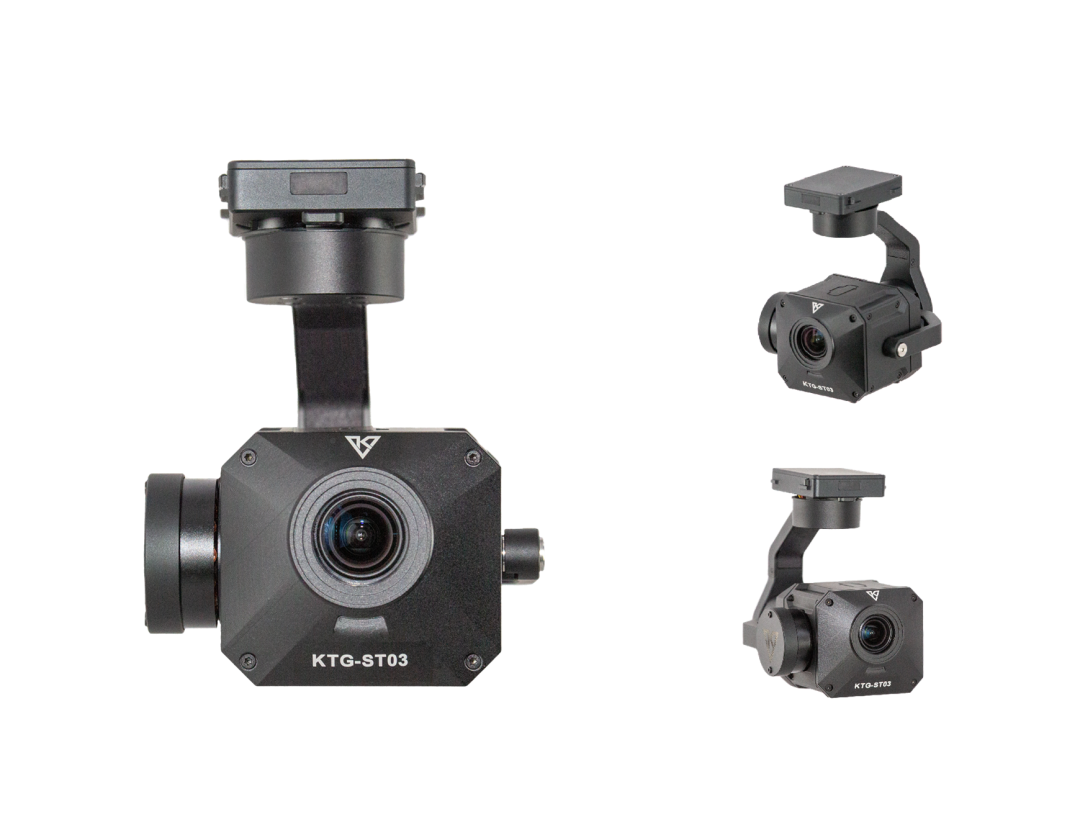

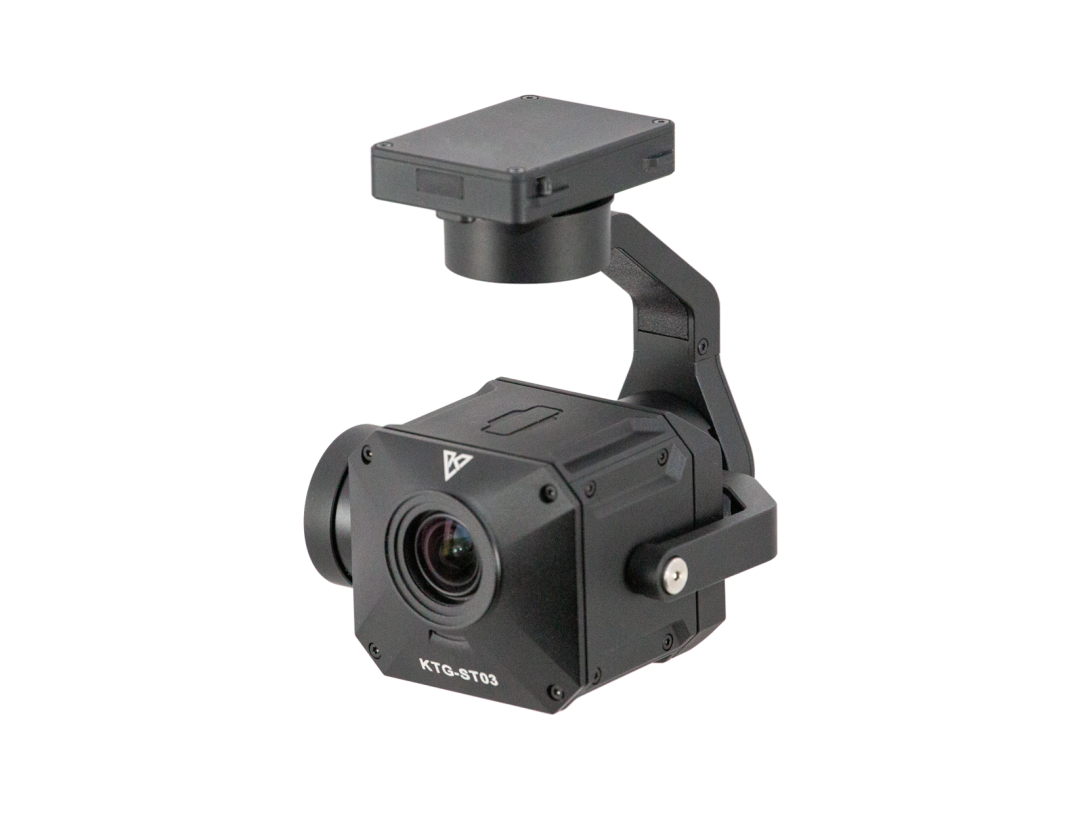

Design and Features
Single Optics System
Equipped with a high-quality visible light camera, ideal for delivering precise imagery in complex environments, ensuring high efficiency in surveillance or inspection.
4K High-Resolution Video
Features a 12.93MP 1/2.8-inch CMOS sensor capable of capturing video at up to 3840x2160@30fps.
Three-Axis Stabilized Gimbal
Integrated with a dual-axis stabilization system providing ±0.01° accuracy, ensuring stable image output in motion or vibration-prone environments.
Precision Operation
Supports full-range PTZ control and zoom functionality, allowing flexible and accurate imaging from various angles.
Quick-Release Design
Slide-rail quick release system enables fast installation and removal, improving flexibility and maintenance efficiency.
Gimbal Tracking System
With target tracking, the system automatically locks onto and follows moving subjects, ensuring precise, stable video—ideal for reconnaissance and surveillance.
Basic Performance Specifications
| KTG-ST03 | |
| Basic Spec. | |
| Input Voltage | 12-25V |
| Power | 7W |
| Weight | 412g |
| Dimension | 110*90*120mm |
| Operating Temp. | -10o C ~ 60oC |
| Storage Temp. | -20o C ~ 70oC |
| Memory Card | Micro SD card |
| Interface | RJ45 (IP) |
| Gimbal | |
| Angle Vibration | ±0.008o |
| Control Range | Pitch:+70º ~ -100o，Yaw:360º |
| Structure Range | Pitch:+70º ~ -100o，Yaw:360º， Roll:+45º ~ -45o |
| Control Speed | Pitch:120º/s，Yaw:180º/s |
| EO | |
| CMOS | 1 / 2.3" Sony Starvis |
| Pixel | 12.93M Pixels |
| Optical Zoom | 3.5X 3.85 ～ 13.4mm |
| F-number | F：2.4 ~ 5.03 |
| FOV | 75.40° ～ 24.9° |
| Sensitivity | Color: 0.5 Lux / F2.4 |
| Resolution | 3840 x 2160@25/30fps（8MP） 4000x3000@10fps （12MP） |
| DRI（M）(1.8m*0.5m) | D:4610 R:1150 I:580 |
| Vid | H.264+ / H.264 / M-JPEG |
