Design and Features
Basic Performance Specifications

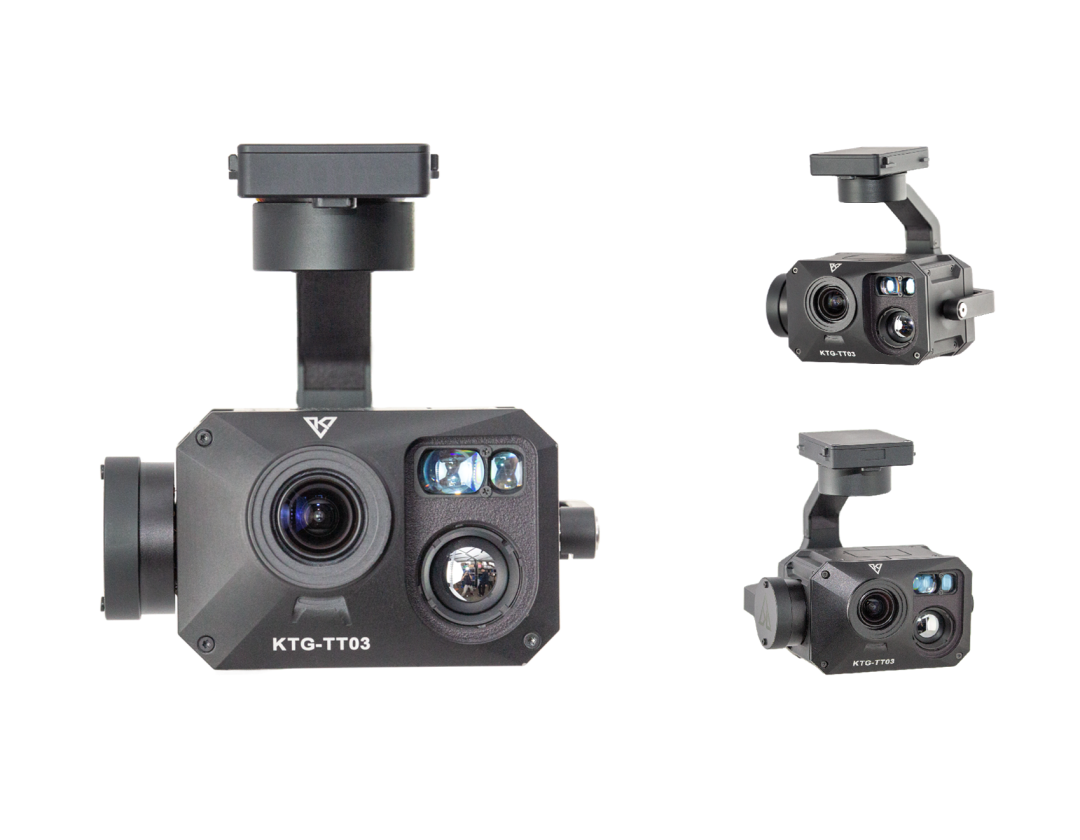

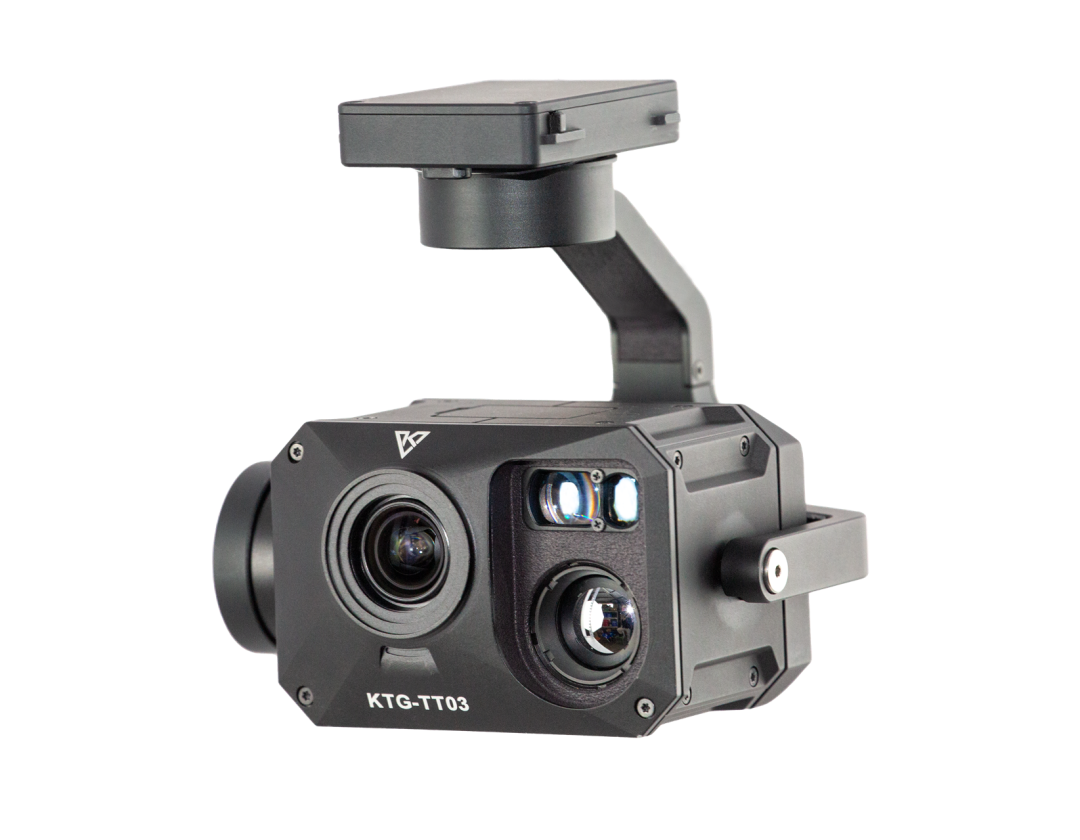

Design and Features
Tri-Sensor Core
Integrates an optical zoom camera, thermal imager, and laser rangefinder—delivering high-resolution visuals, precise heat detection, and enhanced target identification.
4K Ultra HD Imaging
Equipped with an 8MP 1/2.8" CMOS sensor, capable of recording video at up to 3840×2160 resolution at 30fps.
Three-Axis Stabilized Gimbal
Integrated with a dual-axis stabilization system providing ±0.01° accuracy, ensuring stable image output in motion or vibration-prone environments.
Precision Operation
Supports full-range PTZ control and zoom functionality, allowing flexible and accurate imaging from various angles.
Quick-Release Design
Slide-rail quick release system enables fast installation and removal, improving flexibility and maintenance efficiency.
Laser Rangefinding
Equipped with a 1000-meter laser rangefinder to assist in locating objects by latitude, longitude, and altitude.
Thermal Imaging Technology
The thermal camera operates effectively in low-light conditions, making it ideal for nighttime surveillance and specialized environment applications.
Basic Performance Specifications
| KTG-TT03 | |
| Basic Spec. | |
| Input Voltage | 12-50V |
| Power | 8.4W |
| Weight | 487g |
| Dimension | 105*115*120mm |
| Operating Temp. | -10o C ~ 60oC |
| Storage Temp. | -20o C ~ 70oC |
| Memory Card | Micro SD card |
| Interface | RJ45 (IP) |
| Gimbal | |
| Angle Vibration | ±0.008o |
| Control Range | Pitch:+70º ~ -90o，Yaw:360º |
| Structure Range | Pitch:+70º ~ -100o，Yaw":360º， Roll:+45º ~ -45o |
| Control Speed | Pitch:120º/s，Yaw:180º/s |
| EO | |
| CMOS | 1 / 2.3" Sony Starvis |
| Pixel | 12.93M Pixels |
| Optical Zoom | 3.5X 3.85 ～ 13.4mm |
| F-number | F：2.4 ~ 5.03 |
| FOV | 75.40° ～ 24.9° |
| Sensitivity | Color: 0.5 Lux / F2.4 |
| Resolution | 3840 x 2160@25/30fps（8MP） 4000x3000@10fps（12MP） |
| DRI（M）(1.8m*0.5m) | D:4610 R:1150 I:580 |
| Vid | H.264+ / H.264 / M-JPEG |
| IR | |
| Sensor | non-cooler LWIR |
| Resoultion | 640*480@30fps |
| Lens | 19mm Fixed-focus lens |
| sensitivity | <50mk |
| DRI（M）(1.8m*0.5m) | D:90 R:170 I:4690 |
| LRF | |
| Laser Wavelength | 905nm |
| Measure Range | 5 meters ~ 1000meters |
| Laser Power | Class 3A (FDA) & Class 3R (Taiwan) |
| Accuracy | ± 1m |
