Design & Features

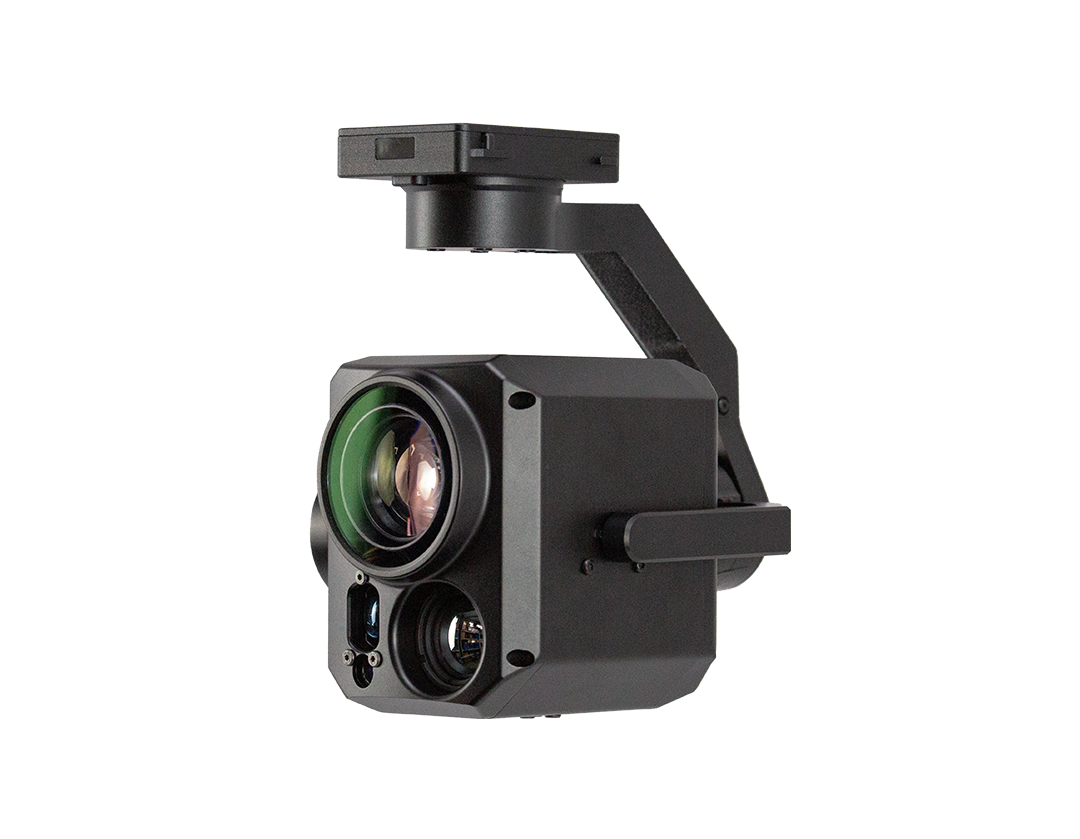

Tri-Sensor Core
Integrates an optical zoom camera, thermal imager, and laser rangefinder—delivering high-resolution visuals, precise heat detection, and enhanced target identification.
2K High-Definition Video
Features a 5.14MP 1/2.8" Sony Starvis sensor, capable of recording up to 2592x1944@30fps.

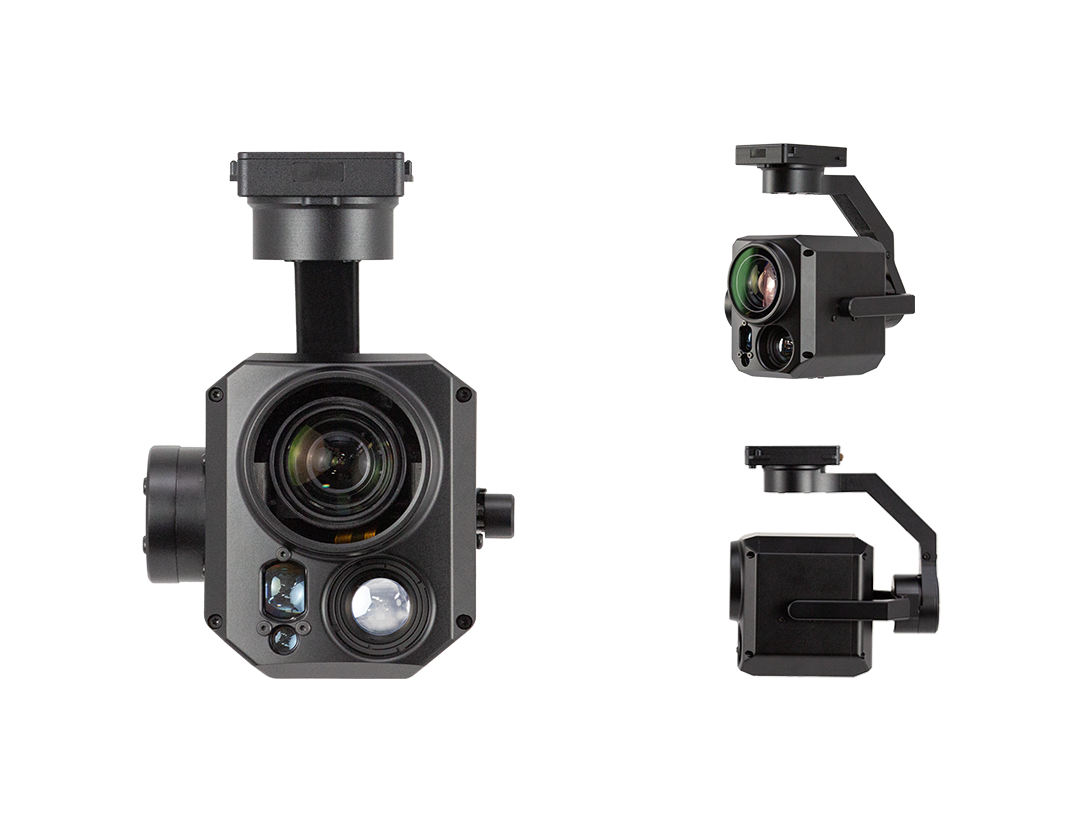

Three-Axis Stabilized Gimbal
Integrated with a three-axis stabilization system providing ±0.01° accuracy, ensuring stable image output in motion or vibration-prone environments.
Precision Operation
Supports full-range PTZ control and zoom functionality, allowing flexible and accurate imaging from various angles.
Quick-Release Design
Slide-rail quick release system enables fast installation and removal, improving flexibility and maintenance efficiency.
Basic Performance Specifications
| TT1001R | |
| basic spec. | |
| Input Voltage | 12 - 50V |
| Power | <10W |
| Weight | 482.9g |
| Dimension | 126 * 97 *134 mm |
| Operating Temp. | -10℃ ~ 65℃ |
| Storage Temp. | -20℃ ~ 70℃ |
| Memory Card | Micro SD Card |
| Interface | RJ45 Ethernet (IP) |
| Gimbal | |
| Angle Vibration | ±0.008° |
| Control Range | Pitch: +45° to -90°, Yaw: 360° |
| Structure Range | Pitch: -132.5° to 73° Roll: ±60°, Yaw: ±360° |
| Control Speed | Pitch: 120°/s, Yaw: 180°/s |
| EO | |
| CMOS | 1/2.8" Sony Starvis CMOS Sensor |
| Pixel | 5.14M pixels |
| Optical Zoom | 10x"(for magnification or zoom )F=5mm ~ 50 mm |
| F-number | F1.4 ~ F2.5 |
| FOV | 6°~46°(Horizontal) ; 3°~24°(Vertical) |
| Sensitivity | 0.008 lux (color) , 0.003 lux (black & white) |
Resolution |
2592x1944 @ 30fps 2592x1520 @ 30fps 1920x1080 @ 30fps 1280x720 @ 30fps 640x480 @ 30fps |
| DRI（M）(1.8m*0.5m) | D:5910 R:1470 I:740 |
| Vid | H.264+ / H.264 / M-JPEG |
| IR | |
| Sensor | non-cooler LWIR |
| Resoultion | 640*480 @ 30fps |
| Lens | 18mm Fixed-fouse lens |
| Sensitivity | <50mk |
| DRI（M）(1.8m*0.5m) | D : 560 R : 140 I : 70 |
| LFR | |
| Laser Wavelength | 905 ± 20nm |
| Measure Range | 5 meters ~ 3,600 meters |
| Laser Power | Class 2, <1mW |
| Accuracy | ±0.4% x Distance |
