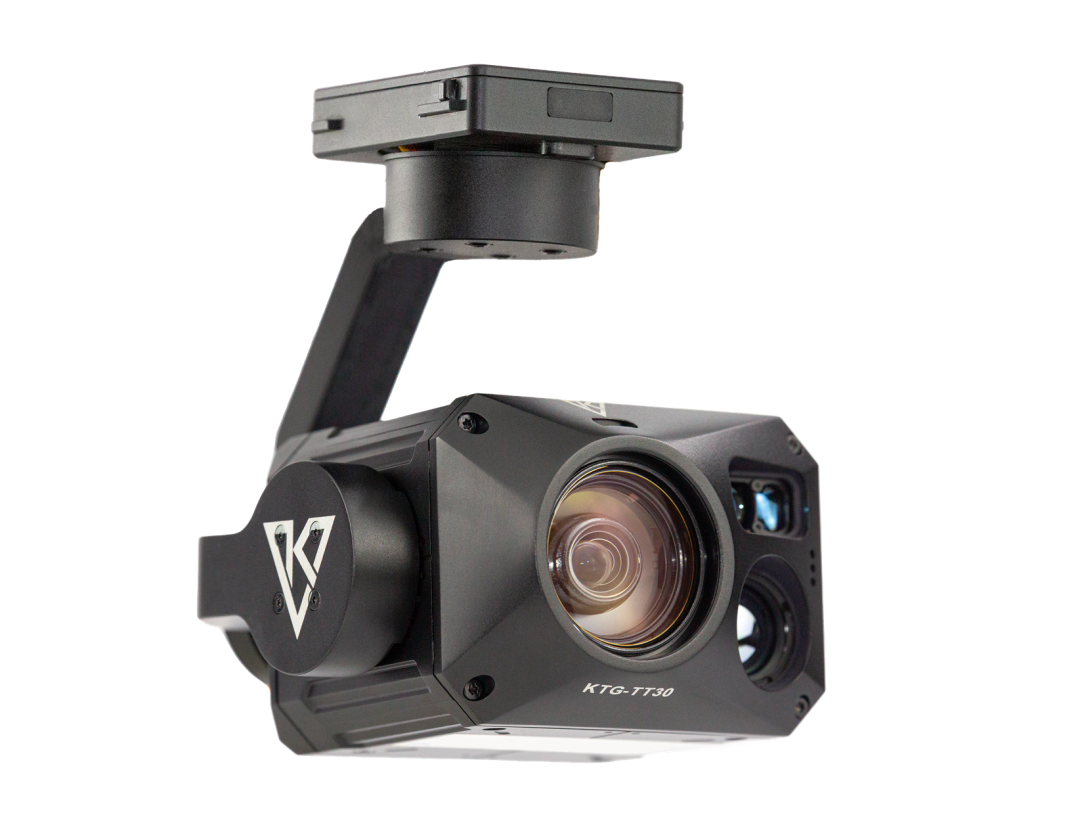

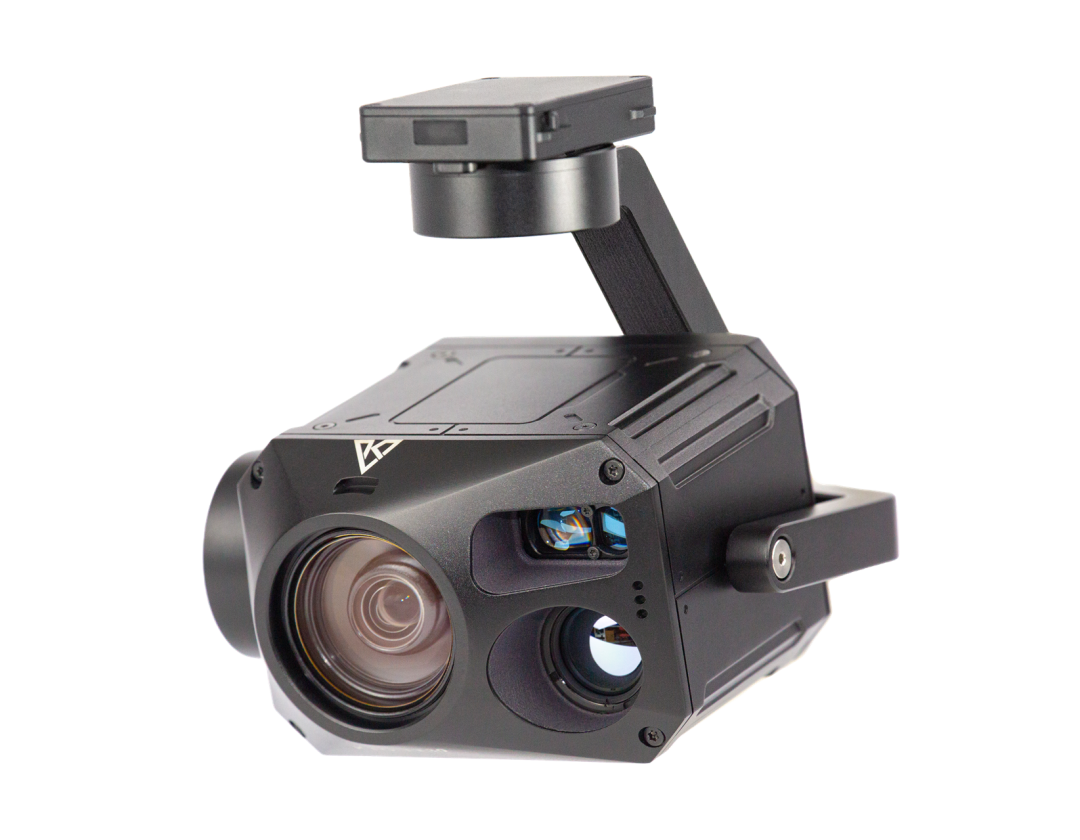

Design and Features
Tri-Sensor Core
Integrates an optical zoom camera, thermal imager, and laser rangefinder—delivering high-resolution visuals, precise heat detection and enhanced target identification.
High-Definition Imaging
Supports 1080p HD output—ideal for defense, security surveillance and industrial inspection, delivering outstanding visual performance.
Three-Axis Stabilized Gimbal
Integrated with a dual-axis stabilization system providing ±0.01° accuracy, ensuring stable image output in motion or vibration-prone environments.
Precision Operation
Supports full-range PTZ control and zoom functionality, allowing flexible and accurate imaging from various angles.
Quick-Release Design
Slide-rail quick release system enables fast installation and removal, improving flexibility and maintenance efficiency.
Laser Rangefinding
Equipped with a 1000-meter laser rangefinder to assist in locating objects by latitude, longitude and altitude.
Thermal Imaging Technology
The thermal camera operates effectively in low-light conditions, making it ideal for nighttime surveillance and specialized environment applications.
Basic Performance Specifications
| KTG-TT30 | |
| Basic Spec. | |
| Input Voltage | 12-50V |
| Power | 8.4W |
| Weight | 740g |
| Dimension | 150*130*140mm |
| Operating Temp. | -10o C ~ 45oC |
| Storage Temp. | -20o C ~ 70oC |
| Memory Card | Micro SD card |
| Interface | RJ45 (IP) |
| Gimbal | |
| Angle Vibration | ±0.008o |
| Control Range | Pitch:+45º ~ -90o，Yaw:360º |
| Structure Range | Pitch:+45º ~ -90o，Yaw:360º， Roll:+45º ~ -45º |
| Control Speed | Pitch:120º/s，Yaw:180º/s |
| EO | |
| CMOS | 1/2.8" Sony Starvis CMOS Sensor |
| Pixel | 2.16M Pixels |
| Optical Zoom | 30x" (for magnification or zoom) 4.7 ～ 141mm |
| F-number | F：1.5 ～ 4.0 |
| FOV | 61.2° ～ 2.2°（Horizontal）；36.8° ～ 1.2°（Vertical） |
| Sensitivity | 0.005 lux (color), 0.0005 lux (black & white) |
| Resolution | 1920*1080@50/60fps |
| DRI（M）(1.8m*0.5m) | D:16660 R:4160 I:2090 |
| Vid | H.264+ / H.264 / M-JPEG |
| IR | |
| Sensor | non-cooler LWIR |
| Resoultion | 640*480@30fps |
| Lens | 19mm Fixed-focus lens |
| Sensitivity | <50mk |
| DRI（M）(1.8m*0.5m) | D:90 R:170 I:4690 |
| LRF | |
| Laser Wavelength | 905nm |
| Measure Range | 5 meters ~ 1000meters |
| Laser Power | Class 3A (FDA) & Class 3R (Taiwan) |
| Accuracy | ± 1m |
