Design and Features
Basic Performance Specifications
Design and Features

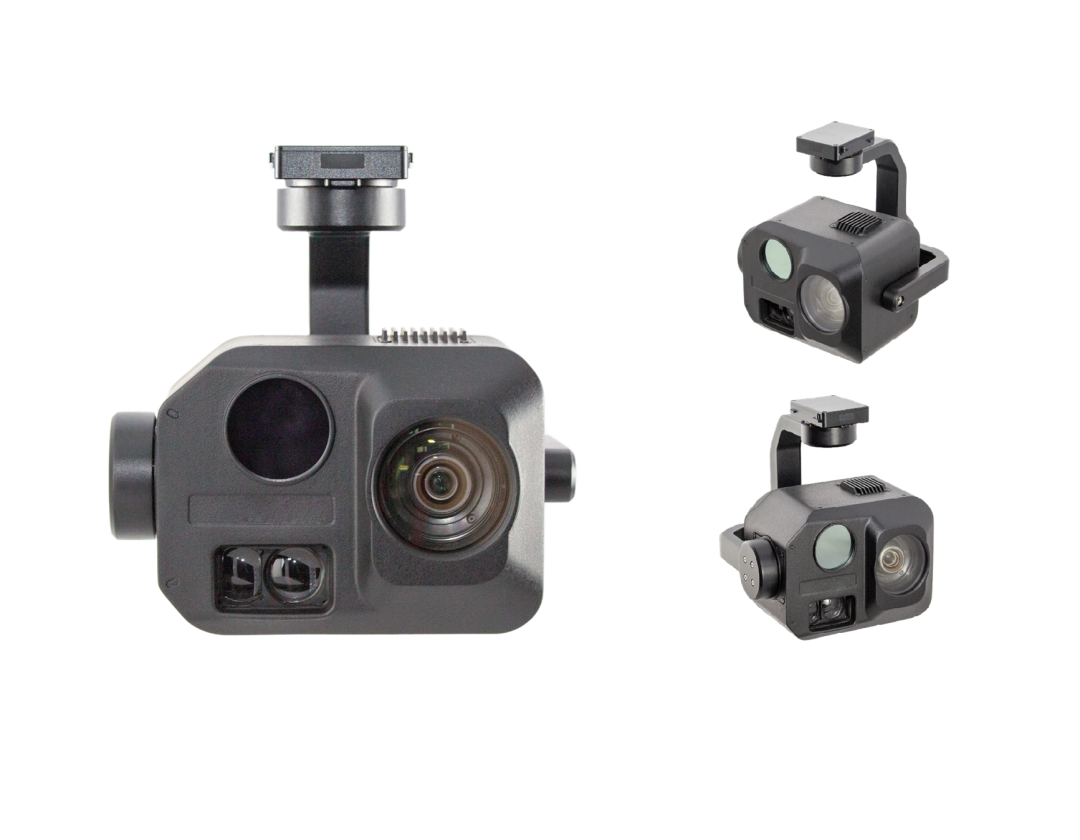

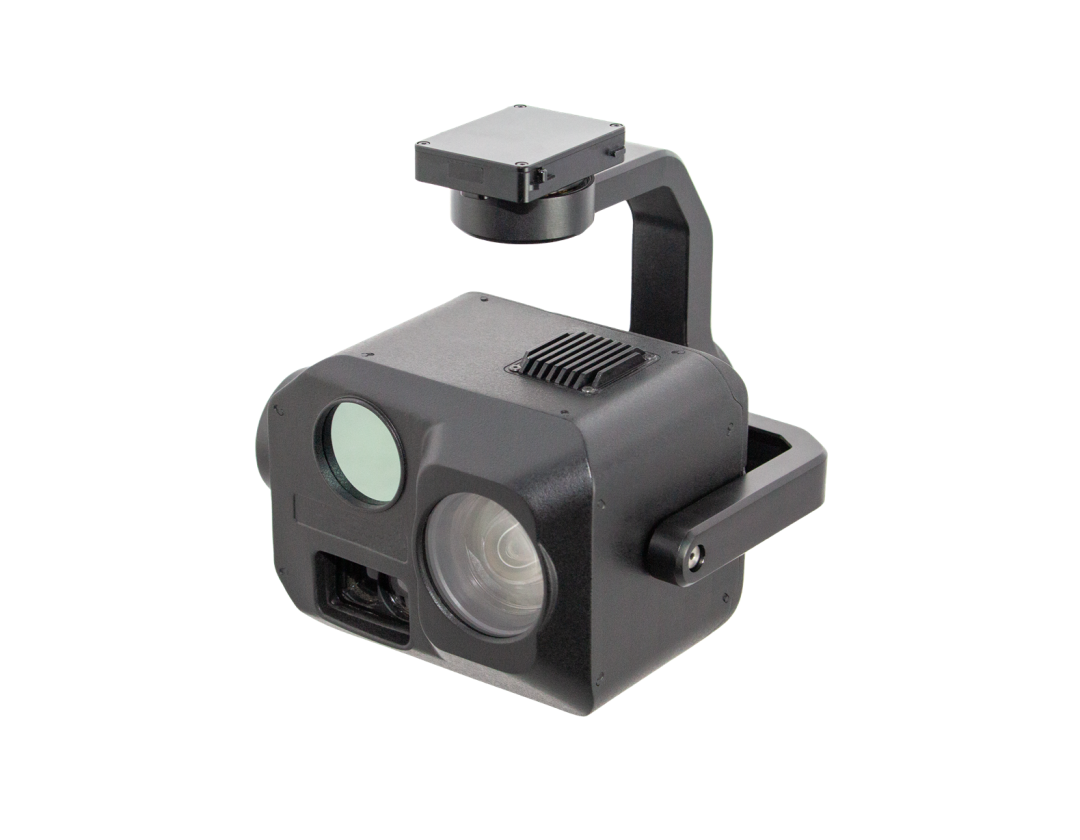

Tri-Sensor Core
Integrates an optical zoom camera, thermal imager, and laser rangefinder—delivering high-resolution visuals, precise heat detection, and enhanced target identification.
4K Ultra HD Imaging
Equipped with an 8MP 1/2.8" CMOS sensor, capable of recording video at up to 3840×2160 resolution at 30fps.
Three-Axis Stabilized Gimbal
Integrated with a three-axis stabilization system providing ±0.01° accuracy, ensuring stable image output in motion or vibration-prone environments.
Precision Operation
Supports full-range PTZ control and zoom functionality, allowing flexible and accurate imaging from various angles.
Quick-Release Design
Slide-rail quick release system enables fast installation and removal, improving flexibility and maintenance efficiency.
AI-Powered Analysis & Tracking
AI-based image recognition for automatic target detection, tracking & analysis—identifying specific targets such as personnel and vehicles for intelligent surveillance.
Laser Rangefinding
Equipped with a 1000-meter laser rangefinder to assist in locating objects by latitude, longitude, and altitude.
Thermal Imaging Technology
The thermal camera operates effectively in low-light conditions, making it ideal for nighttime surveillance and specialized environment applications.
Basic Performance Specifications
| KTG-TT3001 | |
| Basic Spec. | |
| Input Voltage | 12-50V |
| Power | 8.4W |
| Weight | 980g |
| Dimension | 160*162*195mm |
| Operating Temp. | -10o C ~ 65oC |
| Storage Temp. | -20o C ~ 70oC |
| Memory Card | Micro SD card |
| Interface | RJ45 (IP) |
| Gimbal | |
| Angle Vibration | ±0.008o |
| Control Range | Pitch:+45º ~ -90o，Yaw360º |
| Structure Range | Pitch:+45º ~ -90o，Yaw360º， Roll:+90º ~ -60º |
| Control Speed | Pitch:120º/s，Yaw180º/s |
| EO | |
| CMOS | 1/2.8" Sony Starvis CMOS Sensor |
| Pixel | 8M Pixels |
| Optical Zoom | 30x" (for magnification or zoom) F=4.8mm ~ 144 mm |
| F-number | F1.5 ~ F3.4 |
| FOV | 3.07°~57.05°（Horizontal）；1.6°~34.04°（Vertical） |
| Sensitivity | 0.009 lux (color), 0.004 lux (black & white) |
| Resolution | 3840x2160@30fps , 2592x1520@30fps, 1920x1080@30fps, 1280x720@30fps, 640x480@30fps |
| DRI（M）(1.8m*0.5m) | D: 17010 R:4250 I:2130 |
| Vid | H.264+ / H.264 / M-JPEG |
| IR | |
| Sensor | non-cooler LWIR |
| Resoultion | 640*480@30fps |
| Lens | 13.5mm Fixed-focus lens |
| Sensitivity | <50mk |
| DRI（M）(1.8m*0.5m) | D:90 R:170 I:4690 |
| LRF | |
| Laser Wavelength | 905nm |
| Measure Range | 5 meters ~ 3,600 meters |
| Laser Power | Class 3A (FDA) & Class 3R (Taiwan) |
| Accuracy | ± 1m |
