Design and Features
UVN4005R-28-2G
UVN4005R-28-5G

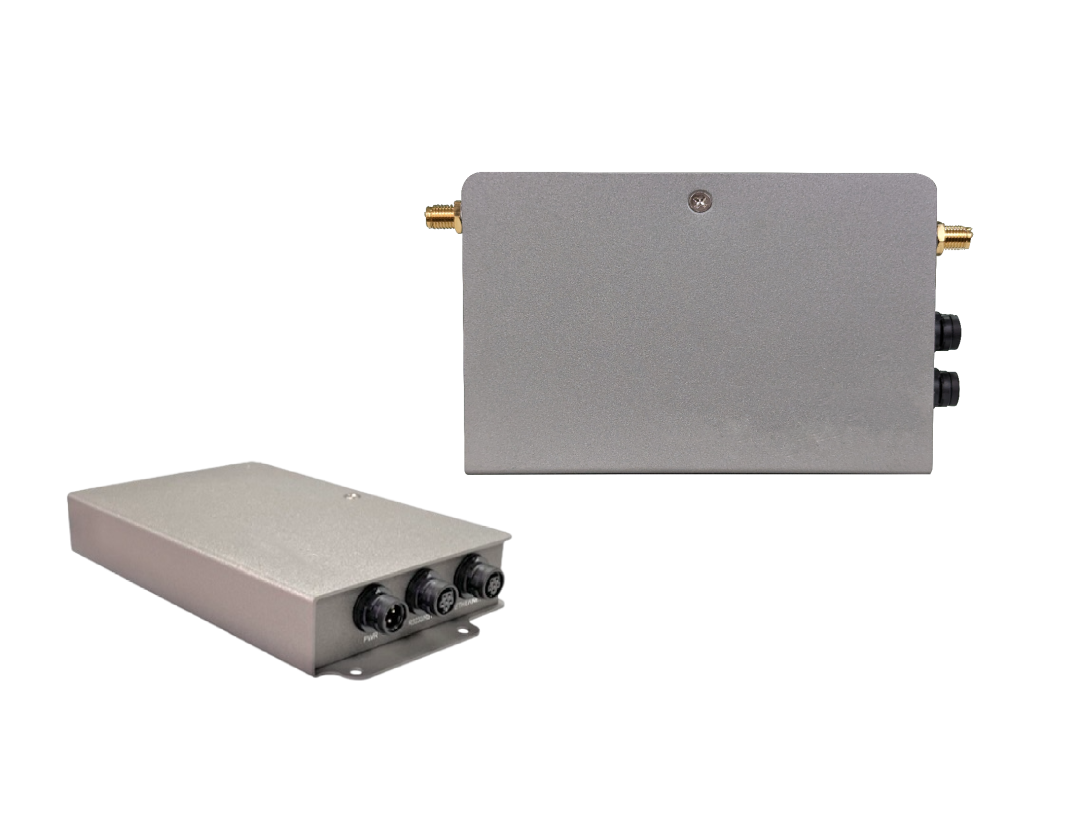

Design and Features
Lightweight Metal Housing
Constructed with a one-piece lightweight metal design for enhanced durability and protection.
IP-Rated Connectors
Lock-Point Mounting Design
The communication module features a lock-point mounting system for quick and easy installation or removal.
Meets International Standards
Operates within the ISM frequency bands defined by the ITU Radiocommunication Sector (ITU-R).
UVN4005R-28-2G
| Wireless | UVN4005R-28-2G |
| Frequency range | 2200 - 2560 MHz |
| Output power | 28 dBm ± 1.5 dB |
| Channel bandwidth | 2.5 - 40 MHz |
| Operating RF channel | ONE |
| Modulation | CCK, DSSS, HT-OFDM |
| Sensitivity | Varying between -96 dBm ± 1 dB and -73 dBm ± 2 dB |
| Antenna system | 2x2 MIMO |
| Max. Physical Layer Data Rate | 300 Mbps |
| Operating mode | Mesh Ad-Hoc |
| Ant. connector | RP-SMA female connector |
Interfaces |
3 pins (DC) |
| 6 pins (RS232 & Reset function) | |
| 6 pins (Ethernet) | |
| Input Voltage | 12 - 24 VDC |
| Power consumption | Max. 10 W |
| Weight | 140 g |
| Dimension | 117.2 x 75.3 x 20.8 mm |
| The 2.4 GHz frequency range is compliant with NCC RF testing and carries the certification label CCAH23LPB100T6. | |
| Ordering information | |
| ANT2324M5 | 2.4 GHz 5 dBi Omni antenna |

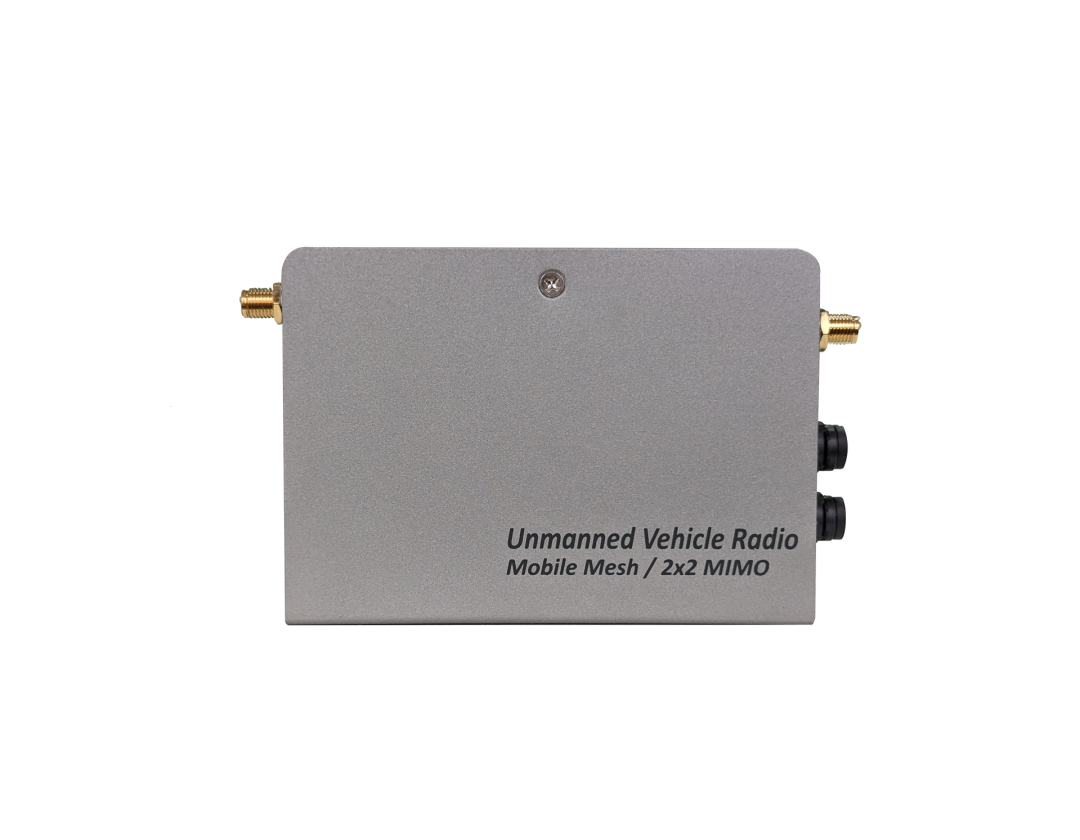

UVN4005R-28-5G
| Wireless | UVN4005R-28-5G |
| Frequency range | 5 GHz |
| Output power | 27 dBm ± 1.5 dB |
| Channel bandwidth | 7 - 40 MHz |
| Operating RF channel | ONE |
| Modulation | HT-OFDM |
| Sensitivity | Varying between -96 dBm ± 1 dB and -73 dBm ± 2 dB |
| Antenna system | 2x2 MIMO |
| Max. Physical Layer Data Rate | 300 Mbps |
| Operating mode | Mesh Ad-Hoc |
| Ant. connector | Type SMA Female x 2 |
Interfaces |
6 pins (RS232 & DC In) |
| 6 pins (Ethernet) | |
| Input Voltage | 12 - 24 VDC |
| Power consumption | Max. 12 W |
| Weight | 200 g |
| Dimension | 113.5 x 75.2 x 20.5 mm |
| ANT2324M5 | 5000 – 5900 MHz 10dBi 2x2 MIMO Omni-directional antenna |
