Design & Features
Precise Motor Control
Equipped with high-performance chips and advanced algorithms for smooth and responsive control.
Stable Power Output
Integrated power management ensures stable voltage/current, protecting against overheating and overload.
Efficient Heat Dissipation
Built-in cooling system efficiently regulates temperature, enhancing performance and extending product life.
Enhanced Stability
High-quality materials and circuit design provide excellent anti-interference capabilities for reliable operation in complex environments.
Made in Taiwan
Crafted with precision manufacturing for durable and long-lasting performance.
Flexible Compatibility
Easily integrates with various UAVs and electronics, simplifying installation for diverse applications.
Basic Performance Specifications
| Specifications | ||

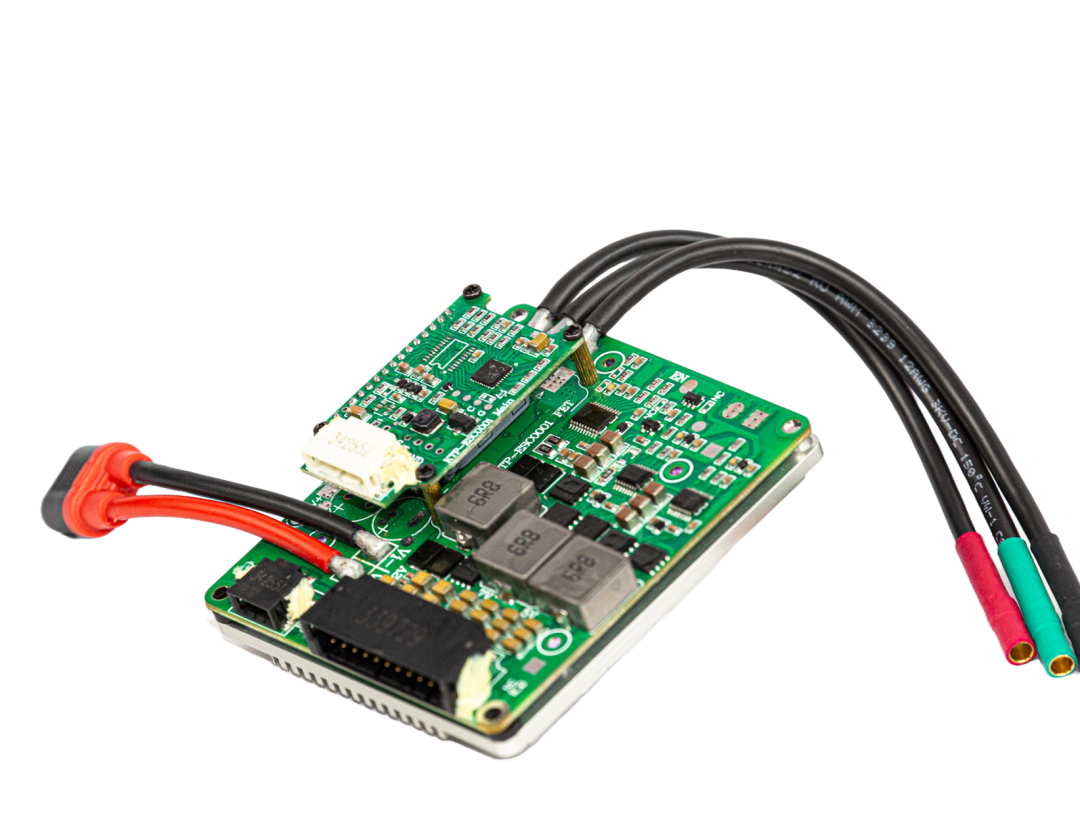

| Item No | KTP-PM0001CS (22300) | |
| Input Voltage | 9-26 Volts (4S~6S) | |
ESC |
Max. Continue Current | 80 A |
| Max. Burst Current | 120 A | |
DC/DC Convert Output Voltage |
5V *3 Sets (Max.6A / 30W ) 7V*3 Sets (Max.7A / 49W ) 12V*4 Sets (Max. 4A / 48W ) |
|
| Communication |
Voltage / Current / Temp.-UART RPM (out) - Digital IO PWM (in)- PWM |
|
| Baurate | 115200 | |
| Dimension | 70*80*17.8 mm | |
| Weight (wo/Cables) | 87g | |
