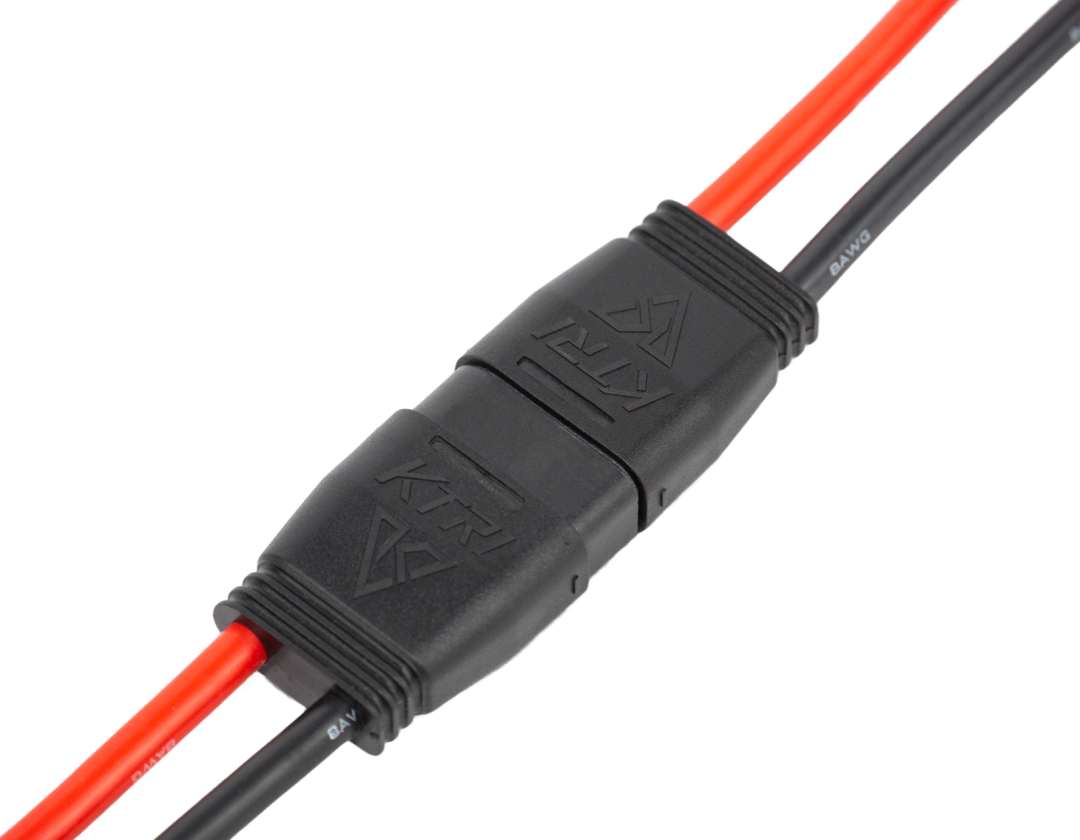

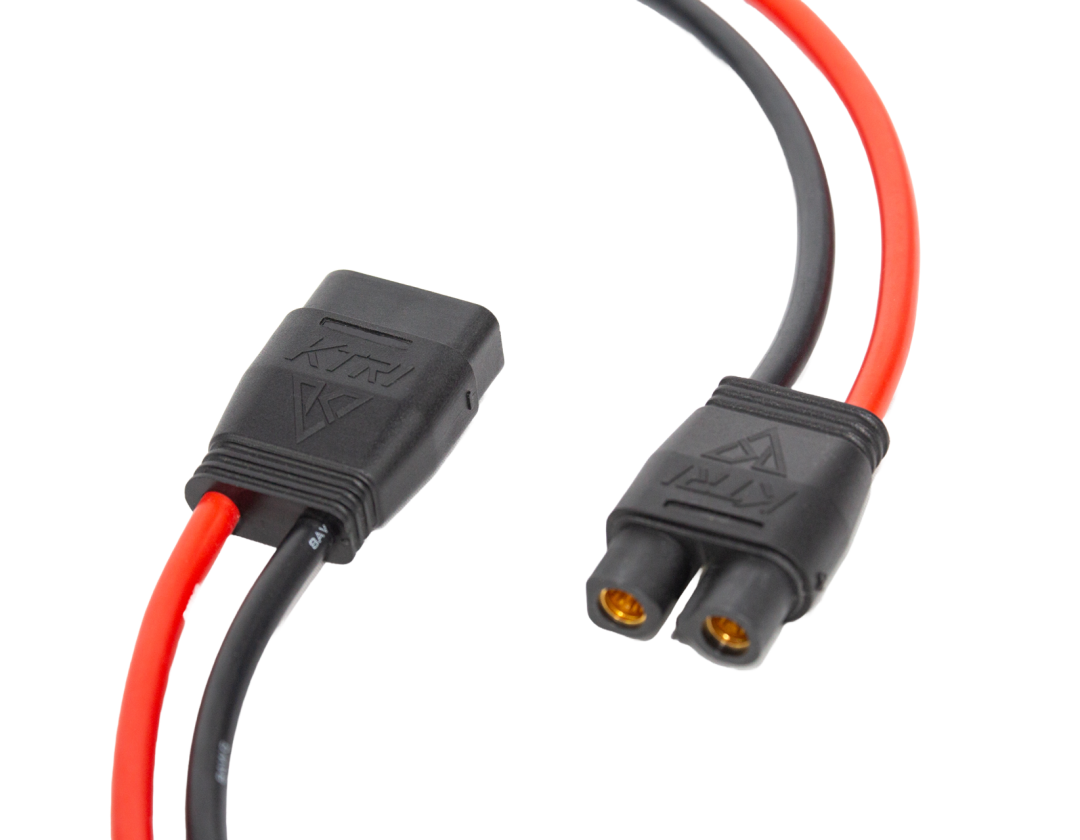

Design & Features
Superior Fire Resistance
Made with flame-retardant materials to reduce spark risk and ensure UAV system safety.
Superior Fire Resistance
Built for harsh conditions with high wear and impact resistance, reducing maintenance needs.
High-Temperature Resistance
Constructed from premium materials that withstand heat, ideal for industrial environments and UAV electrical safety.
Made in Taiwan
Every connector is rigorously tested to meet high standards, ensuring performance and stability.
Easy Installation
User-friendly design for fast setup, compatible with various UAV systems for flexibility and efficiency.
Beryllium Copper Design
Utilizes BeCu for conductivity, wear resistance, corrosion protection, and secure, reliable electrical performance.
Basic Performance Specifications
| KTP-D6 | |
| Terminal material | Brass with gold plating |
| Connector material | PBT |
| Operating temperature | -20℃~105℃ |
| Wired connection method | Soldering |
| Flame retardant rating | UL94 V-0 |
| Flammability rating | IP65(It requires the use of a gasket for proper mating to achieve an IP65 rating.) |
| Recommended wire gauge for wired connection | 8 AWG |
Test data
| Test Item: Current Temperature Rise Test – Referencing CNS 15424-1-4.3.6 & UL 1977 The temperature rise data is compared under different current/time conditions, with the basic temperature rise requirement being △T < 50℃ {or < RTI (Relative Thermal Index)}. |
|||||||||||||||||
| Model number | Test voltage(DC) | Test current(A) | Ambient temperature and humidity(°C) | Testing point | Temperature point inspection time period(sec)--°C | Requirements | ΔT | Determination | |||||||||
| 0 | 1800 | 3600 | 5400 | 7200 | 9000 | 10800 | 12600 | 13500 | 14400 | ||||||||
| KTP-D6-01 | 48V | 70A | 25.5(°C) / 55.7% | 1. "+"Wire input | 25.5 | 44.2 | 47.1 | 46.5 | 46.8 | 46.2 | 47.9 | 46.6 | 46.8 | 46.8 | ΔT<50°C | 22.4 | PASS |
| 2. "-" Wire output | 25.6 | 53.1 | 54.3 | 54.3 | 54.5 | 54 | 54.5 | 53.7 | 54.1 | 54.3 | 29 | PASS | |||||
| 3. Housing | 25.6 | 49.3 | 49.6 | 49.9 | 50.4 | 50.3 | 50.2 | 48.5 | 48.4 | 48.5 | 24.9 | PASS | |||||
| 4. "-" SR | 25.4 | 47.9 | 49.6 | 49.2 | 49.3 | 48.5 | 49.5 | 48.5 | 48.7 | 48.9 | 24.1 | PASS | |||||
| Test voltage(DC) | Test current(A) | Ambient temperature and humidity(°C) | Testing point | Temperature point inspection time period--°C | Requirements | ΔT | Determination | ||||||||||
| 0 | 1800 | 3600 | 5400 | 7200 | 9000 | 10800 | 12600 | 13500 | 14400 | ||||||||
| 30V | 100A | 26.0(°C) / 50.9% | 1. "+"Wire input | 26.1 | 65 | 64.9 | 68.6 | 70 | 70.4 | 69.9 | 69.6 | 70.7 | 70.5 | ΔT<50°C | 22.4 | PASS | |
| 2. "-" Wire output | 26.3 | 61 | 63.7 | 67.4 | 69 | 69.5 | 68.8 | 70.3 | 70.3 | 70.3 | 29 | PASS | |||||
| 3. Housing | 26.3 | 54.4 | 53.8 | 57.2 | 57.1 | 58.4 | 58.5 | 58.8 | 58.8 | 58.8 | 24.9 | PASS | |||||
