Design & Features
Basic Performance Specifications
Design & Features
Precise Motor Control
Equipped with high-performance chips and advanced algorithms for smooth and responsive control.
Stable Power Output
Integrated power management ensures stable voltage/current, protecting against overheating and overload.
Efficient Heat Dissipation
Built-in cooling system efficiently regulates temperature, enhancing performance and extending product life.
Enhanced Stability
High-quality materials and circuit design provide excellent anti-interference capabilities for reliable operation in complex environments.
Made in Taiwan
Crafted with precision manufacturing for durable and long-lasting performance.
Flexible Compatibility
Easily integrates with various UAVs and electronics, simplifying installation for diverse applications.
Basic Performance Specifications
| Specifications | ||

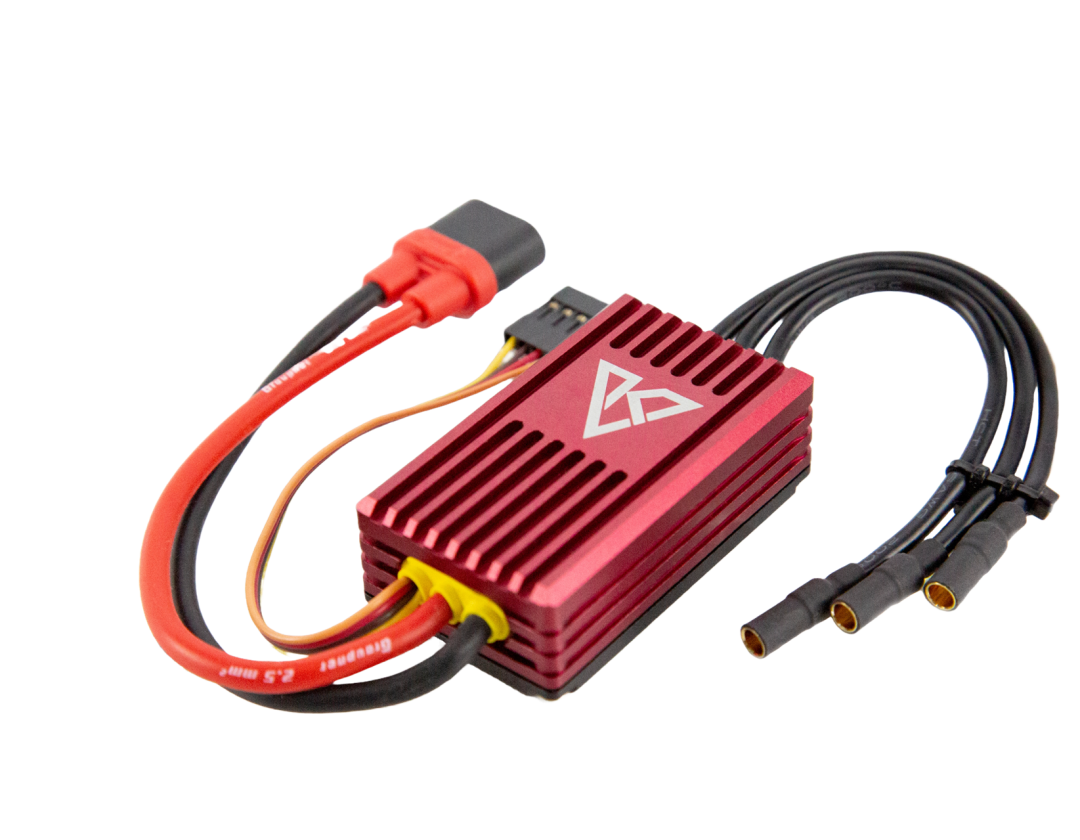

| Item No | KTP-K80 | |
| Input Voltage | 16.8 ~ 58.8 Volts (6S ~ 14S) | |
|
ESC |
Max.Continue Current | 60 A |
| Max. Burst Current | 80 A | |
| DC/DC Convert Output Voltage | 8V *1 Sets (Max.10A / 80W ) | |
| Communication | RPM (out) - Digital IO PWM (in)- PWM |
|
| Dimension (without cable) |
55*31.5*18 mm | |
| Weight | 76g | |
