Design & Features
Made in Taiwan
Manufactured with Taiwan’s precision engineering, ensuring every motor meets top performance and quality standards.

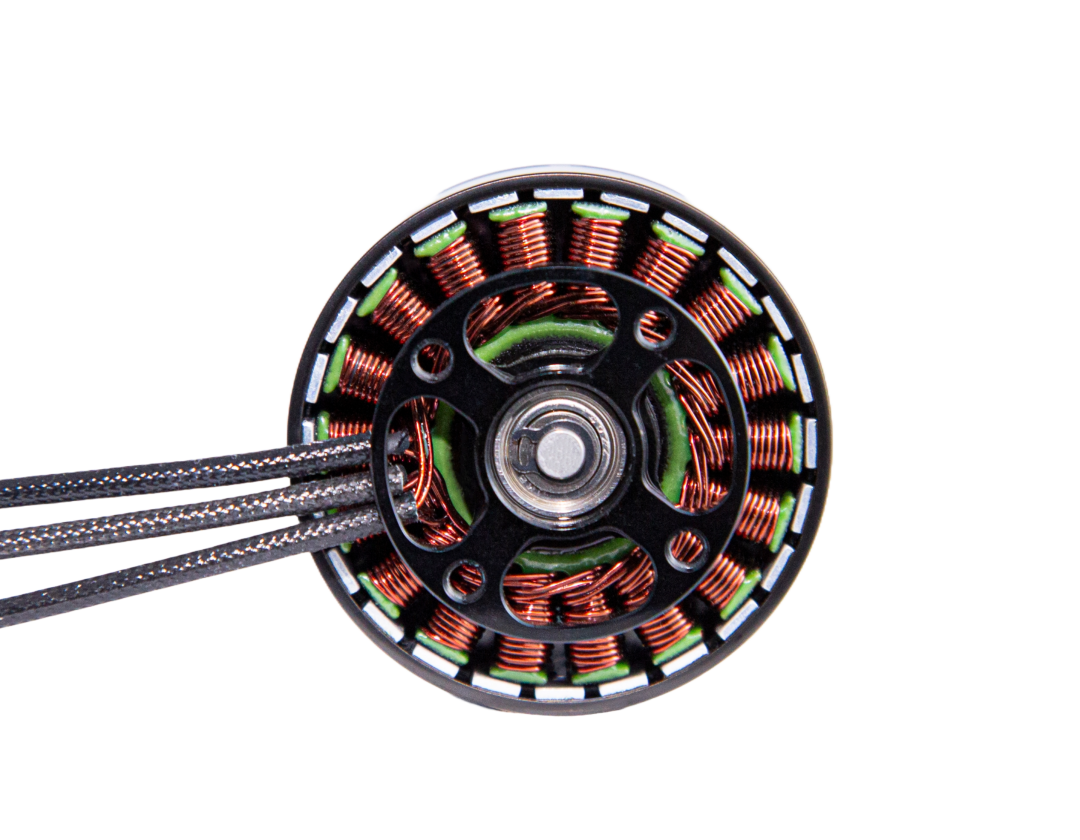

Outrunner Design
The unique external rotor design provides higher RPM output—ideal for high-power & precise control applications.
High Efficiency & Low Loss
Designed for high performance with reduced energy consumption and extended lifespan.
Low Noise Operation
Optimized rotor balancing significantly reduces operational vibration and noise.
Basic Performance Specifications

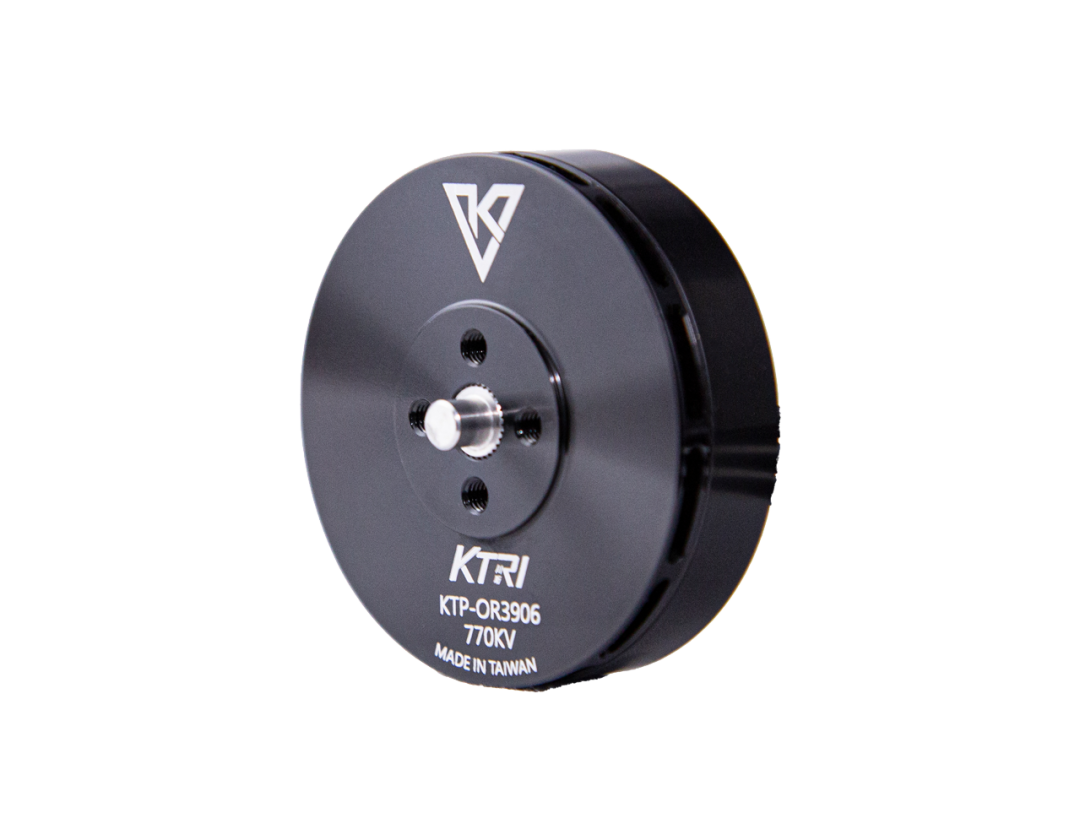

| Model No. | OR3906-770KV |
| Stator Diameter | 39mm |
| Stator Thicknes | 6mm |
| No.of stator Arms | 18 |
| Magnetic Poles | 24 |
| Wire Winding | 12 Turn Delta |
| Wire Spec. | 2-Strand 0.49mm |
| KV | 770 RPM/V |
| Max Continuous Current | 35 Amps |
| Max Continuous Power | 560 Watts |
| Weight | 73 g |
| OD | 43.7 mm |
| Shaft Dia | 4mm |
| Overall Length | 18.3 mm |
| Operating V | 4S / 16V |
