Design and Features
Basic Performance Specifications

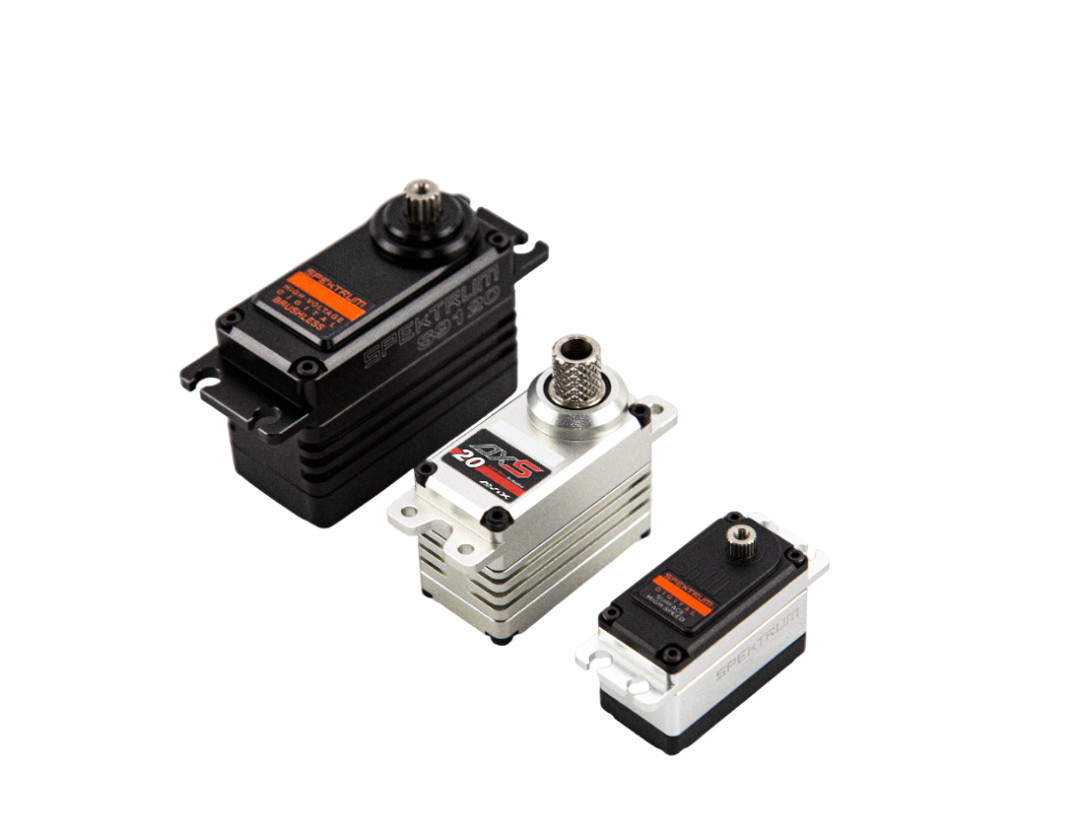

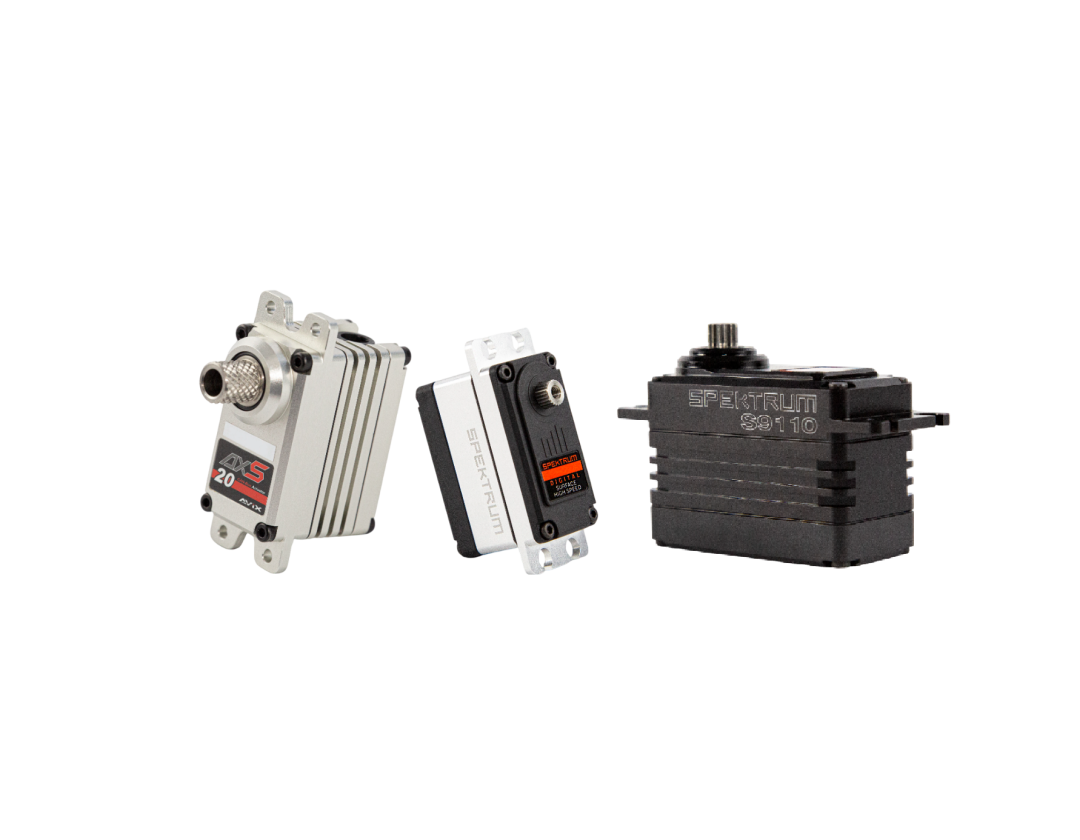

Design and Features
Stepless Direct-Drive Output ShaftThe design enables easier neutral point alignment and calibration.
High-Efficiency Single-Axis DriveFeatures a high-strength structure with optimized gear height for efficient power transmission.
Quick-Release Waterproof Connector DesignSupports cables of various lengths for easier maintenance and faster replacement.
High-Precision Control
Combines digital drive circuitry with a high-performance motor to deliver exceptional precision and fast response for demanding control applications.
Stable High Torque
High-precision gears and a refined mechanical design ensure stable high-torque output and long-lasting performance.
Fast Frequency Response
The low inertia design enables the servo motor to achieve extremely fast frequency response, enhancing system flexibility and control accuracy.
Made in Taiwan
Manufactured in Taiwan, each servo motor undergoes strict quality testing to ensure stable performance and meet high-standard requirements.
Exceptional Durability
Made with high-quality materials and optimized design, ensuring stable performance under heavy loads and prolonged use, adaptable to harsh environments and working conditions.
Easy Installation and Integration
Designed with user needs in mind, offering simple installation and integration for quick adaptation to various mechanical systems, enhancing overall operational efficiency.
Basic Performance Specifications
| 基本規格 | |||||||
| Product | Servo Operating Voltage | Maximum Servo Torque | Length | Width | Height | Width | Rotation Range |
| S6230 | 6.0V (HV) |
311 oz-in (22.4kgf-cm) @ 6.0V | 1.61 in (40mm) | 0.79 in (20.15mm) | 1.72 in (43.8mm) | 2.1 oz (59.5g) | 120 deg |
| S6240 | 6.0V (HV) |
208 oz-in (15.0kgf-cm) @ 6.0V | 1.61 in (41mm) | 0.79 in (20.15mm) | 1.72 in (43.8mm) | 2.1 oz (59.5g) | 120 deg |
| S6245 | 6.0 - 7.4V (HV) | 206 oz-in (14.8kgf-cm) @ 6V 266 oz-in (19.2 kgf-cm) @ 7.4V |
1.61 in (41mm) | 0.82 in (20.9mm) | 1.32 in (33.7mm) | 2.2oz (62.37g) | 120 deg |
| S6250 | 6.0 - 8.4V (HV) | 271 oz-in (19.5kgf-cm) @ 6V 339 oz-in (24.4kgf-cm) @ 7.4V 382 oz-in (27.5kgf-cm) @ 8.4V |
1.61 in (41mm) | 0.82 in (20.9mm) | 1.48 in (37.6mm) | 2.3 oz (65.2g) | 120 deg |
| S6260 | 6.0 - 8.4V (HV) | 167 oz-in (12.0kgf-cm) @ 6V 210 oz-in (15.1kgf-cm) @ 7.4V 241 oz-in (17.4kgf-cm) @ 8.4V |
1.61 in (41mm) | 0.82 in (20.9mm) | 1.48 in (37.6mm) | 2.3 oz (65.2g) | 120 deg |
| S6285 | 6.0 - 8.4V (HV) | 496 oz-in (35.7kgf-cm) @ 8.4V | 3.22 in (82 mm) | 0.82 in (20.9 mm) | 1.04 in (26 mm) | 2.8 oz (79.4g) | 120 deg |
| S9110 | 6.0 - 8.4V (HV) | 867 oz-in (62.43 kgf-cm) @ 6.0V 981.75 oz-in (70.69 kgf-cm) @ 7.4V 1224.3 oz-in (88.16 kgf-cm) @ 8.4V |
2.47 in (62.7mm) | 1.18 in (30mm) | 2.29 in (58.2mm) | 6.3 oz (178.6g) | 120 deg |
| S9120 | 6.0 - 8.4V (HV) | 1173 oz-in (84.47 kgf-cm) @ 6.0V 1209 oz-in (87.06 kgf-cm) @ 7.4V 1453.5 oz-in (104.66 kgf-cm) @ 8.4V |
2.47 in (62.7mm) | 1.18 in (30mm) | 2.29 in (58.2mm) | 6.3 oz (178.6g) | 120 deg |
| Product | Servo Operating Voltage | Maximum Servo Torque | Length | Width | Height | Width | Rotation Range |
| 1706 | 6.0 - 8.4V (HV) | 223 oz-in (16.1 kgf-cm) @ 7.4V | 1.85 in (47mm) | 0.98 in (25mm) | 1.40 in (35.8mm) | 3.3 oz (93.8g) | 360 deg |
| 1706-BL(無刷) | 6.0 - 8.4V (HV) | 211.64 oz-in (6kgf-cm) @ 8.4V | 1.85 in (47mm) | 0.98 in (25mm) | 1.40 in (35.8mm) | 3.5 oz (100.0g) | 360 deg |
| 4418 | 6.0 - 8.4V (HV) | 604 oz-in (17.12 kgf-cm) @ 7.4V | 1.85 in (47mm) | 0.98 in (25mm) | 1.40 in (35.8mm) | 3.3 oz (93.8g) | 360 deg |
| 4418-BL(無刷) | 6.0 - 8.4V (HV) | 634 oz-in (18 kgf-cm)@ 8.4V | 1.85 in (47mm) | 0.98 in (25mm) | 1.40 in (35.8mm) | 3.3 oz (100.0g) | 360 deg |
